AEV Electric Push-Pull Test Stand แท่นทดสอบแรงดึงแรงกดระบบไฟฟ้า

Description

Details

DESCRIPTION:

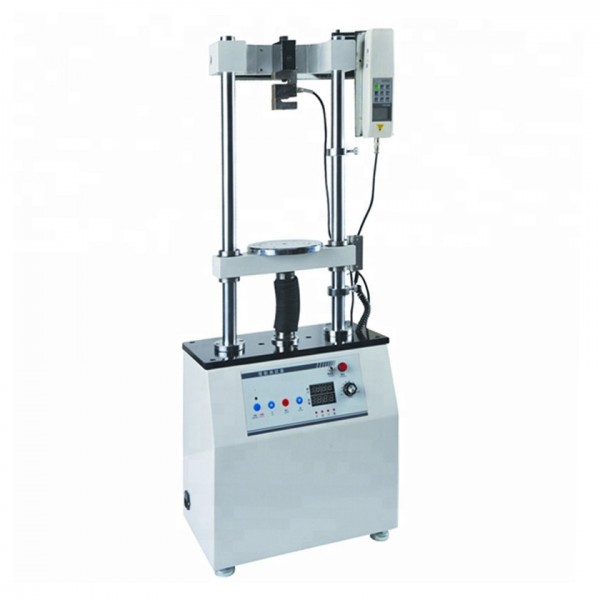

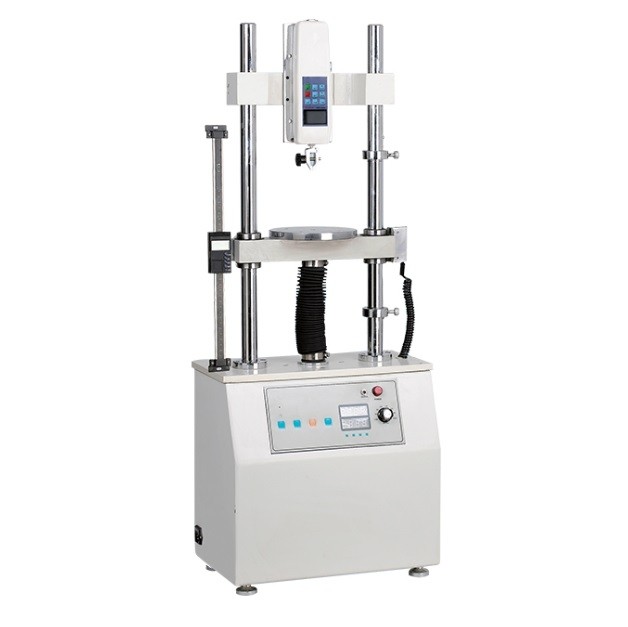

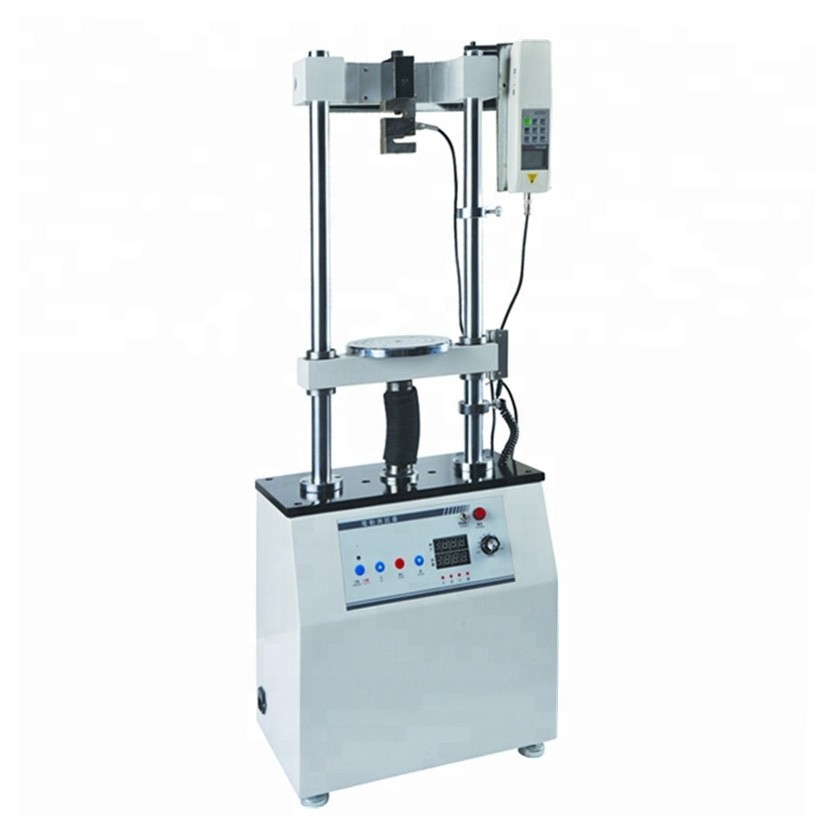

AEV electric vertical machine is a push -pull load test stand specially equipped for HF series and NK series force gauges.
This product adopts dual vertical pole structure, featured by good stability, wide application and easy to use, etc., with the functions of stepless speed regulation, manual (crawl) and automatic switching.
This product is appropriate for the push pull load, plug power and other destructive tests in the industries of rubber, plastics, light textile, building doors and windows, composite materials, wire and cable, auto parts, power machinery and research institutions, etc.

FEATURES:

Electric loading, stepless speed regulation, gear drive
Compact structure and stable drive
Simple operation, can be used with a variety of fixtures

SPECIFICATIONS:

Model	AEV-5000	AEV-5000 (Heighten)	AEV-10000	AEV-20000	AEV-30000
Max load	5000N		10000N	20000N	30000N
Travel	220 mm	220mm(Can custom made from 220mm to 1000mm)
Speed	60-220 mm/min
Working voltage	AC 100-240V
Dimension (mm)	4002501050	4002501300	6404002400
Net weight	56kg	60kg	88kg
