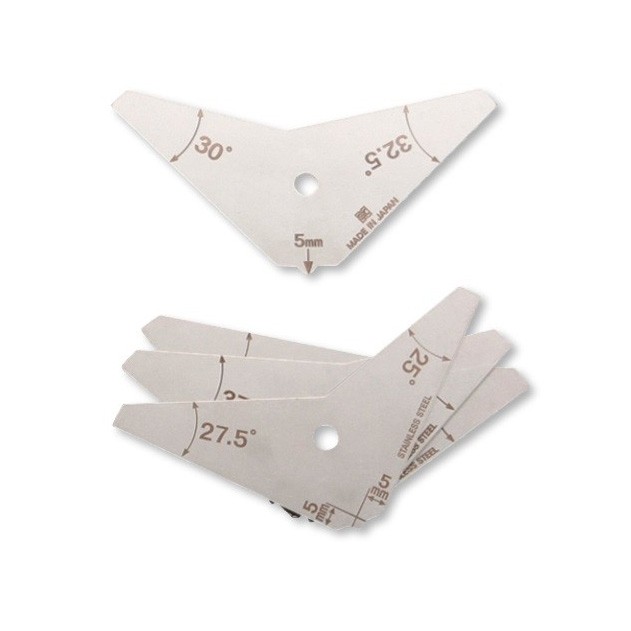

ANGLE LIMIT GAUGE - WAL2542

Description

Details

FEATURES

Material : Stainless steel
Indication of size limit for easy judgement

（angle step by 2.5°, throat thickness step by 1mm）

Set of 4 pieces
Provided with plastic case and ball chain

SPECIFICATIONS

Model No.		WAL2542
Blank No.		1	2	3	4
Outline Dimension (mm)	Overall width	92
	Overall height	46	45	44	43
	Plate thickness	1.5
Material/Finish		SUS304/barrel semi-gloss finish

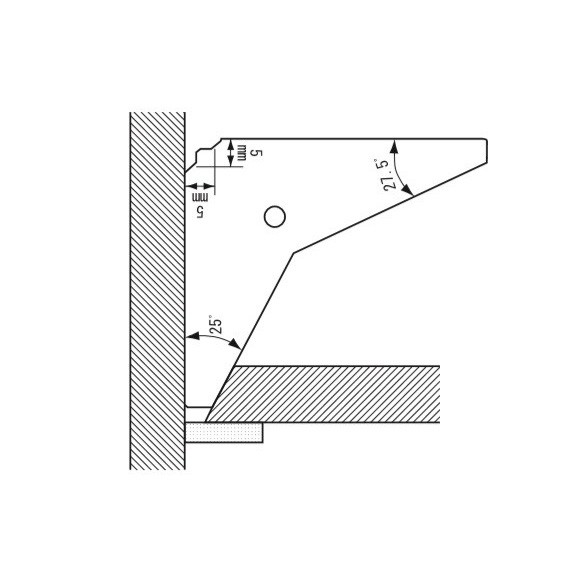

Measurement Value Indication	Angle degree (Both side	25°	30°	35°	40°
		27.5°	32.5°	37.5°	42.5°
	Throat thickness (Front)	4	5	6	7
	Leg Length (Back)	5	7	8	10
Accuracy		Fillet weld•Reinforcement±0.1mm/Angle±1°
Weight		100g
