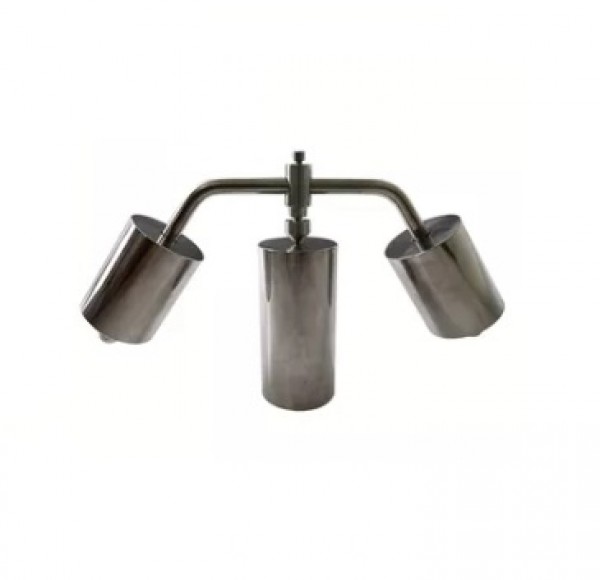

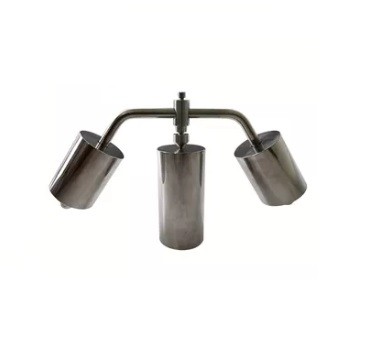

AQY Ball pressure hot deformation capacity tester

Description

Details

Quick Details

Model Number: AQY
Usage: Hot deformation capacity tester, Cable and wire
N.W.: 3.4kg
Size: 270mm*160mm*49mm
Material: Steel
Standard: GB2099

Description

This experiment device is designed according to the "ball pressure test " requirements in GB2099 standards, mainly used for heat testing in household and similar plug sockets products. It is the necessary equipment for relevant manufacturers and qc department for product quality inspection and control.

Parameter

Ball diameter 5mm(R2.5mm)
Total Test pressure 20N±0.2N
Sample support stand:diameter 50mm, length100mm,stainless steel solid cylinder
Producing Materials: all made of stainless steel
Reference standard: GB4706.1-2005,GB2099.1-2008,GB/T5159.21-2006,IEC60695-10-2:2003

Notes: Supporting the use of the Ball pressure test we also Need two extremely hot ovens additional.

Structure diagram

AQY Ball pressure hot deformation capacity tester
