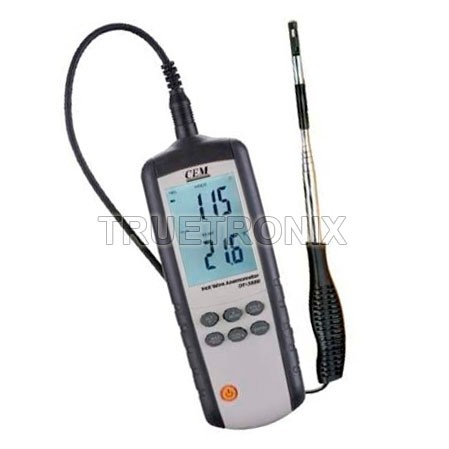

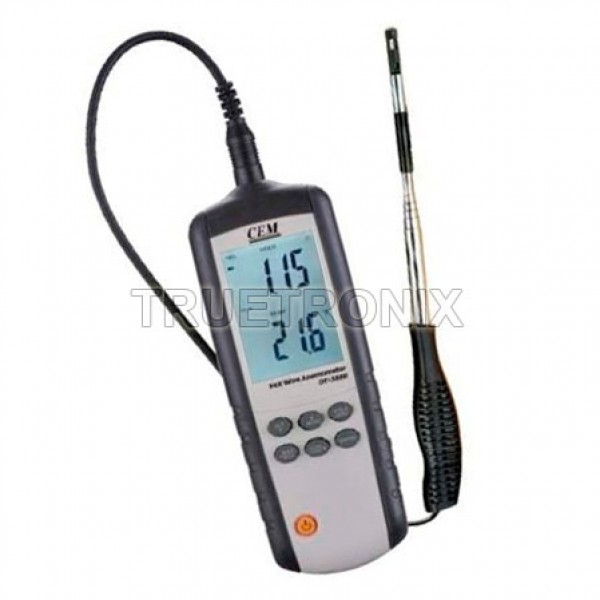

CEM DT-3880 Hot Wire Anemometer
Features:
- Thermal anemometer, available for very low air velocity measurement.
- Slim probe, ideal for grilles & diffusers.
- Combination of hot wire and standard thermistor, deliver rapid and precise measurements
- Records maximum/minimum readings with recall & data hold.
- Microprocessor circuit assures maximum possible accuracy, provides special functions and features.
- Super large LCD display with backlight, reading the air velocity & temp. at the same time.
- Data Hold.
- Power supply by 3.7V Rechargeable Battery.
- The portable anemometer provides fast, accurate readings, with digital readability
- Multi-functions for air flow measurement: m/s, km/h, ft/min, MPH, Knots & build in temperature ºC / ºF
- Thermistor sensor for Temperature measurement, fast response time.
- Probe length for shortest 0.32m, 1.15m for the longest elongation. Line Length is 1.75m
- Applications: Environmental testing, Air conveyors, Flow hoods, Clean rooms, Air velocity, Air balancing, Fans/motors/blowers, Furnace velocity, Refrigerated case and Paint spray booths.
Specifications:
Air Velocity
- m/s (meter per second)
- Range: 0.1~25.0m/s
- Resolution: 0.01m/s
- Accuracy: ±5% ±0.1m/s
- km/h (kilometers per hour)
- Range:0.3~90.0km/h
- Resolution: 0.1km/h
- Accuracy:±5% ±0.1km/h
- ft/min (feet per minute)
- Range:20~492ft/min
- Resolution: 1ft/min
- Accuracy: ±5% ±1ft/min
- MPH (miles per hour)
- Range: 0.2~55.8MPH
- Resolution: 0.1MPH
- Accuracy: ±5% ±0.1MPH
- Knots (nautical miles per hour)
- Range: 0.2~48.5knots
- Resolution: 0.1knots
- Accuracy: ±5% ±0.1knots
- Air Temperature Range
- Range: 0ºC to 50ºC / 32ºF to 122ºF
- Resolution: 0.1ºC/0.1ºF
- Accuracy: 1ºC /1.8ºF
- Size(HxWxD): 160mm x 58mm x 27mm
- Weight: 200g

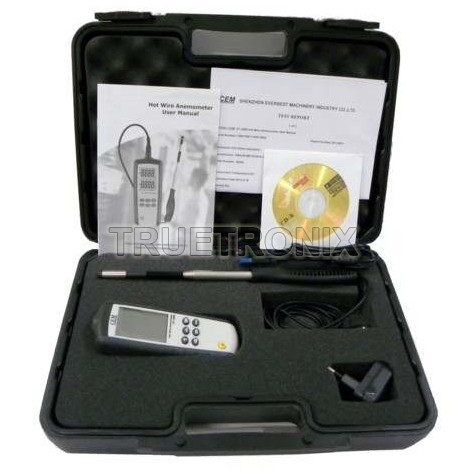

Package includes:
- Hot Wire Anemometer with probe
- User Manual
- CD
- Test Report
- USB Cable
- Power Supply (EU plug)
- Carrying Case
