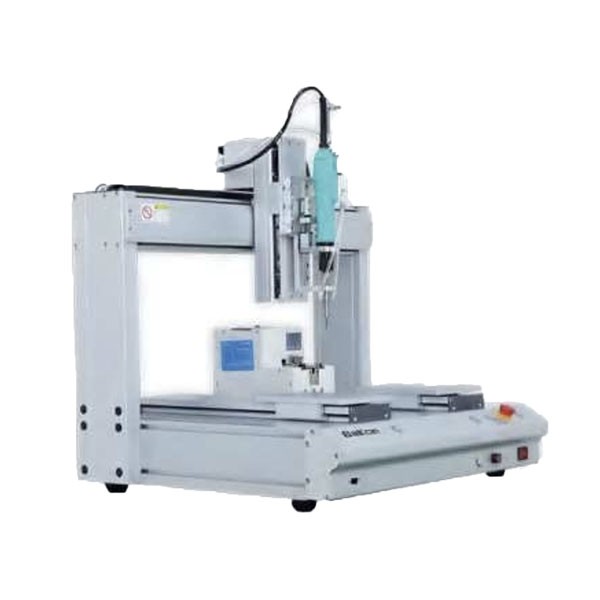

BK double Y suction type automatic screwing machine

Description

Details

Description:

This machine has two Y-axis arms that can work at the same time or separately.It uses vacuum suction to pick up and place screws quickl

Specifications:

Machine size: L730*W610*H860 mm
Large working platform: 660mm*610mm*106.5mm
Drive mode: Double shaft precision step drive
Adjustment: 1-600mm/sec
Total Weight: 70kg
Power motor: Step motor; garment motor (optional)
Repeatability: ±0.1 / ±0.05mm
Screw method: Synchronous belt + screw precision straight line rail
Control System: Three axis control system
Applicable locking screws: M1.5-M5.0
Screw feeding method: Suction type
Lock-up efficiency: 1.0-2.5S/piece, depending on the screw
Supporting Documentation: CAD/CorelDRAW
Power supply: 100-200V AC
