Cap Sealer DG-4000H เครื่องซีลผนึกปิดฝาอลูมิเนียมฟอยล์ขวด

Description

Details

Application:

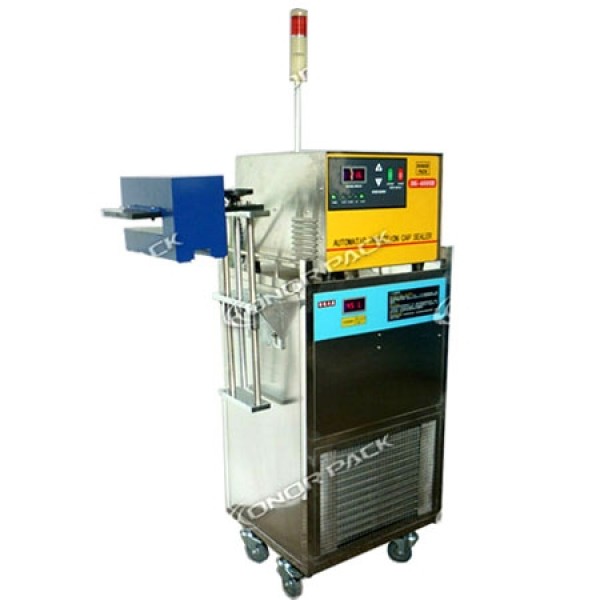

The machine is automatic electromagnetic induction heating equipment. It is mainly used to seal containers with aluminum foil for pharmacy, chemical industry, pesticide, food, cosmetic, light industry, etc.

Principal Feature:

Low EMI design for improve equipment performance and work their reliability, while ensuring reliable operation of electrical equipment around.
Unique water Cooling System & compact trough construction specially for sealing small diameter containers
Adjustable powder supply applicable for various diameter & bottle materials.
Adjustable induction head’s height to co-operate for different production lines.
Auto-Start, after initial start-up, allows delivery and removal of power to the coil by an external contact.
Stainless Steel Construction for harsh environments.
Applicable for plastic (PP, PET, HDPE, PVC, PS etc.) and glass containers.

Specifications:

Voltag: AC220V±10%, 50/60Hz
Power: Max.4000W
Standard Sealing diameter: Ø10~ø60mm or ø30~ø75mm or 60~ø140mm by option (Special diameter be able to customize)
Cooling System: Water Cooling
Main Machine dimension: 400 x 450 x 300mm
Induction head dimension: 300x 130 x 150mm
Cart dimension: 520×450×800mm
Standard elevating range: 65-500mm
