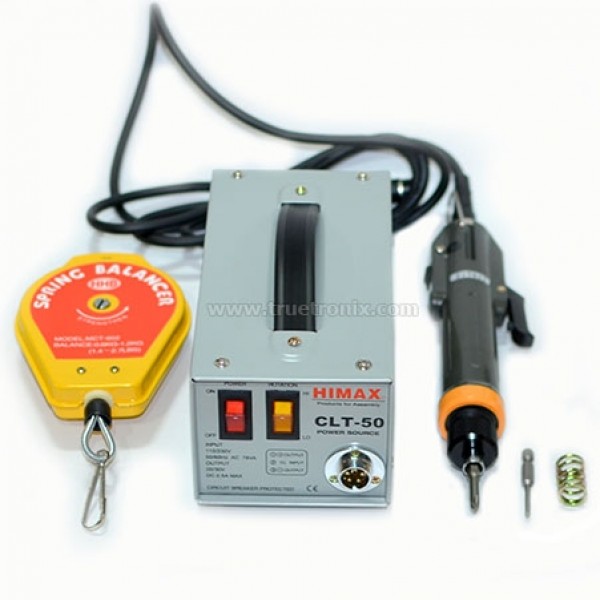

Himax T65 Electric Torque Screwdriver ชุดไขควงไฟฟ้าปรับแรงบิด

Description

Details

DESCRIPTIONS:
With nationwide supply chains, we are a renowned Electric Screwdriver company in Taiwan market, in addition to strong footholds in international market. If you want to know more relative information about Electric Screwdrivers, please contact us immediately.

Torque Controlled Electric Screwdriver
Large Torque Type 2.0~20.0 kgf-cm
Best choice for high torque and high efficient operation
HIMAX TL-6500(T65) provides two torque springs and can adjust output torque via changing torque spring to achieve high torque.

FEATURES:

Developed with emphasize placed on small size and light body.
Designed for ergonomics principles and easy to operate.
Balanced design for reduced vibration and noise.
Highly repetitive torque accuracy.
Wide tightening torque range and convenient torque adjustment.
Safe low voltage direct current method.
High quality motor keep low temperature for successive using.
Double-insulation construction for extra protection.
External replaceable carbon brush, easy to maintain.
Driver cord is free attachable and detachable connector type.
Easily convertible to suction type.

SPECIFICATIONS:

Model		TL-6500 (T65)
Starting Mode		Trigger Start
Torque Spring Color		Silver	Gold
Output	Kgf-cm	2.0~12.0	3.0~20.0
Torque	N-m	0.2~1.2	0.3~2.0
Range	Lbf-in	1.7~10.2	2.6~17.0
Torque Adjusting Mode		Stepless Adjusting
No Load RPM	HI	700
(r.p.m.)±5%	LOW	450
Applicable	Machine	2.0~3.0	2.0~5.0
Applicable Screw Range(mm)	Tapping	2.0~2.6	2.0~4.0
Applicable Bits (Optional)		H5/US5
Deadweight (g)		310
