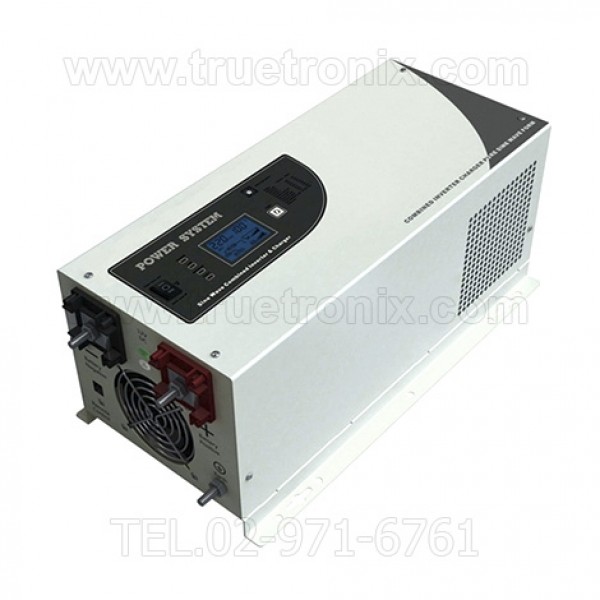

EP3200 Series 2012-3048 อินเวอร์เตอร์ 12V 24V 48V แปลงเป็น 220V

Description

Details

CHARACTERISTICS:

High efficiency over 90%
12V/24V/48V
Max.charge current 70A
Inbuilt pure copper transformer
Automatic three-stage battery Charger
RS232 with free CD (option)
Solar first function (option)
Charge current adjustable (option)
Remote control (option)
CE certificate, Soncap certificate.

SPECIFICATIONS:

Model	1012
Line Mode Specifications:
Input Voltage Waveform	Sinusoidal (utility or generator)
Nominal Input Voltage	110Vac/ 120Vac/ 220Vac/ 230Vac/ 240Vac
Low Line Disconnect	96Vac±4%/155Vac±2%
Low Line Re-connect	100Vac±8%/164Vac ±2%
High Line Disconnect	132Vac±4%/272Vac±2%
High Line Re-connect	127Vac±4%/265Vac±2%
Max AC Input Voltage	140Vrms/270Vrms
Nominal Input Frequency	50Hz/ 60Hz (Auto detection)
Low Line Frequency Re-connect	58+0.3Hz for 60Hz; 44+0.3Hz for 50Hz;
Low Line Frequency Disconnect	57+0.3Hz for 60Hz; 40+0.3Hz for 50Hz;
High Line Frequency Re-connect	64+0.3Hz for 60Hz; 54+0.3Hz for 50Hz;
High Line Frequency Disconnect	80+0.3Hz for 50Hz;
Output Voltage Waveform	As same as Input Waveform
Over-Load Protection(SMPSload)	Circuit breaker
Output Short Circuit Protection	Circuit breaker
Efficiency (Line Mode)	>95%
Transfer Switch Rating	30A
Transfer Time (Ac to Dc)	10ms (typical)
Transfer Time (Dc to Ac)	10ms (typical)
Pass through without Battery	Yes
Max Bypass Overload Current	30A
Invert Mode Specifications:
Output Voltage Waveform	Sine wave
Rated Output Power (VA)	1000
Rated Output Power (W)	1000
Power Factor	1.0
Nominal Output Voltage (V)	110Vac/ 120Vac/ 220Vac/ 230Vac/ 240Vac ± 10%
Nominal Output Frequency (Hz)	60Hz ± 0.3Hz/50Hz ± 0.3Hz
Auto tracking Main Frequency(Hz)	Yes (Following Main first connection) 50Hz @48-54Hz ;60Hz @58-64Hz
Output Voltage Regulation	±10% rms
Nominal Efficiency	>88%
Over-Load Protection (SMPS load)	(110%150% ±10%: Fault (shutdown output) after 20s;
Surge rating (10s)	3000VA
Capable of starting electric motor	1 HP
Output Short Circuit Protection	Current limit (Fault after 10s)
Bypass Breaker Size	10A
Nominal DC Input Voltage	12V
Min DC start voltage	11V/22V/43V
Low Battery Alarm	10.5Vdc ± 0.3Vdc for 12V battery; 21.0Vdc ± 0.6Vdc for 24V battery; 42.0Vdc ± 0.6Vdc for 48V battery
Low DC input Shut-down	10.0Vdc ± 0.3Vdc for 12V battery; 20.0vdc± 0.6Vdc for 24V battery; 40.0Vdc± 0.6Vdc for 48V battery
High DC input Alarm & Fault	16Vdc ± 0.3Vdc for 12V battery; 32Vdc ± 0.6Vdc for 24V battery; 64Vdc ± 0.6Vdc for 48V battery
High DC input Recovery	15.5Vdc ± 0.3Vdc for 12V battery; 31.0Vdc ± 0.6Vdc for 24V battery; 62.0Vdc ± 0.6Vdc for 48V battery
Power saver	Load ≤25W (Enabled on “P/S auto” setting of Remote control)
Charge Mode Specifications:
Nominal Input Voltage	110Vac/ 230Vac/ 220Vac/ 230Vac/ 240Vac
Input Voltage Range	96~132Vac/ 155~272Vac
Nominal Output Voltage	According to the battery type
Nominal Charge Current	35A
Charge Current Regulation	25%, 50%, 75%, 100% charge current adjustable
Battery initial voltage	0 –15.7 Vdc/ 31.4Vdc/ 62.8Vdc (can operate with 0V battery)
Charger Short Circuit Protection	Circuit breaker
Over Charge Protection	Bat. V ≥ 15.7Vdc/ 31.4Vdc/ 62.8Vdc, beeps 0.5s every 1s & fault after 60s
General Specifications
Safety Certification	CE(EN62040-1)
EMC Classification	EN62040-2,C2
Operating Temperature Range	0°C to 40°C
Storage temperature	15°C below zero to 60°C
Operation humidity	5% to 95%
Audible Noise	60dB max
Cooling	Forced air, variable speed fan
Carton Size	570X315X300MM
