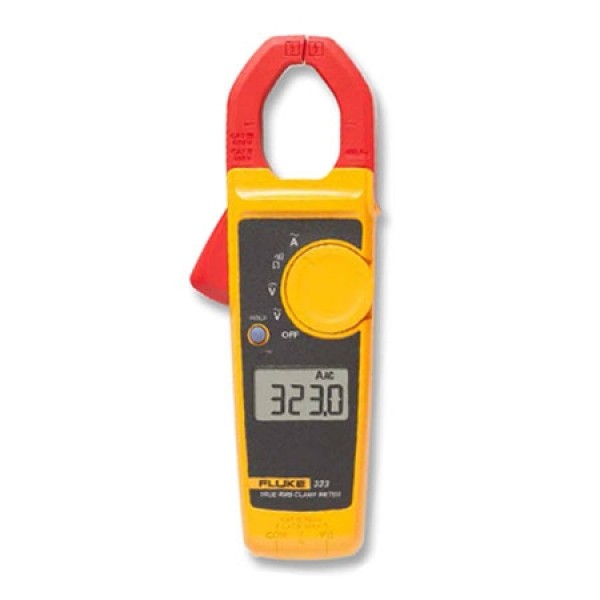

FLUKE 323 Digital clamp meter แคลมป์มิเตอร์

Description

Details

Measurement capability

400 A ac current measurement (ac and dc current; 325 only)
600 V ac and dc voltage measurement
True-rms ac voltage and current for accurate measurements on non-linear signals
Resistance measurement to up to 40 kΩ with continuity detection
Temperature and capacitance measurement (324 and 325 only)
Frequency measurement (325 only)

Features

Slim, ergonomic design
Large, easy to read backlight display (324 and 325 only)
CAT IV 300 V/CAT III 600 V safety rating
Hold button
Two-year warranty
Soft carrying case

Specification

Model		323
AC current	Range	400.0 A
	Accuracy	2 % ± 5 digits (45 Hz to 65 Hz) 2.5 % ± 5 digits (65 Hz to 400 Hz)
DC current	Range	—
	Accuracy	—
AC voltage	Range	600.0 V
	Accuracy	1.5 % ± 5 digits
DC voltage	Range	600.0 V
	Accuracy	1.0 % ± 5 digits
Resistance	Range	400.0 Ω/4000 Ω
	Accuracy	1 % ± 5 digits
Continuity		≤ 70 Ω
Capacitance		—
Frequency		—
AC response		True-rms
Backlight		—
Data hold		Yes
Contact temperature		—
Min/Max		—
Size	H x W x D (mm)	207 x 75 x 34
	Max wire diameter	30 mm (600 MCM)
	Weight	265 g
Category rating		CAT III 600 V CAT IV 300 V
Warranty		Two-year
