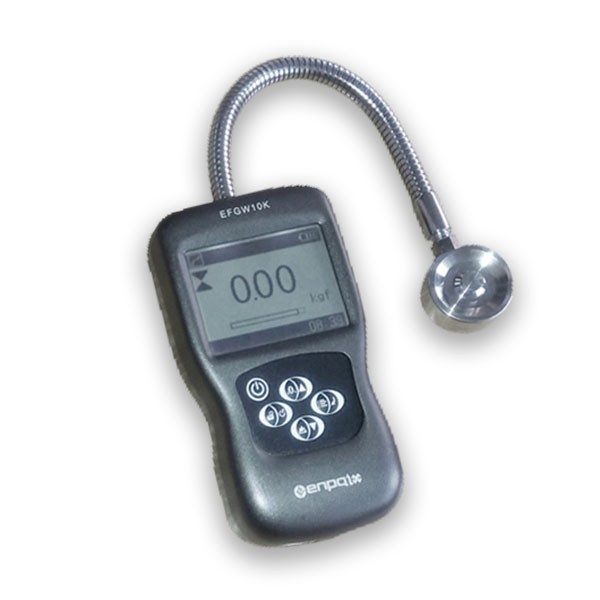

EFGW10K เครื่องวัดแรงกด Spot Welding Force Tester

Description

Details

Feasures

Suitable for welding force measurement of spot welding machine
Accuracy: ± 0.3% FS
Ergonomic, durable, heavy-duty metal construction
Lighter weight, more suitable for handheld operation
Selectable Units: kN, N, kgf, and lbf
Multiple measurement mode can be set
Data USB upload function
Record print function (a mini printer optional)

Specifications

Model: EFGW10K
Capacity:

10kN/1,000kgf/2,250lbf

Resolusion:

0.01kN/1kgf/1lbf

Accuracy: ± 0.3% F.S.
Selectable Units: N, kN, kgf and lbf.(Selectable)
Display: 160*128 dot matrix LCD with LED Backlight
Overload Capacity: 120% F.S.
Overload Protection: Overload Protection Mechanism
Measurement Mode: Track, Peak, PreSet
Sampling Rate: 6000 Hz(max)
Memory: 1000 data
Power: 3.6VDC Ni-MH rechargeable batteries
Battery Life: Approx. 8 hours per charge
Charger/Adaptor: Universal USB/BM charger, Input:110~240VAC
Outputs: USB, overload output
Dimensions: 150*72*330mm
Weight: 1.05 kg
