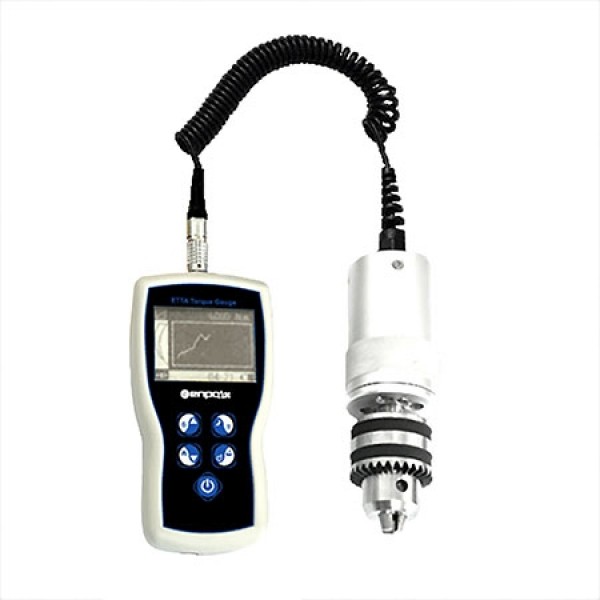

ETTA Digital Torque Gauge เครื่องวัดแรงบิดดิจิตอล

Description

Details

FEATURES:

Accuracy: ±0.3% FS
Ergonomic, durable, heavy-duty metal construction
Touch Pad
Automatic reversible display
Automatic load cell identification (ALI)
Units: N*m, N*cm, kgf*cm, lbf*ft, lbf*in
Display Mode: Data/Graph
Print: Mini printer
Connect to PC easily

ETTA Digital Torque Gauge.pdf

MODELS:

Model	N.m	N.cm	Kgf.cm	Lbf.ft	Lbf.in	Drill Chuck
ETTA1	1/0.001	100/0.1	10/0.01	-	8.9/0.005	1-10mm
ETTA5	5/0.001	500/0.1	50/0.01	3.68/0.001	44.3/0.01	1-10mm
ETTA10	10/0.01	1000/1	100/0.1	7.38/0.001	88.5/0.01	2-13mm

SPECIFICATIONS:

Accuracy	±0.3% FS	Sensor	Rated Output		1.5-2.0mV/V
Unit	N.m, N.cm, Kgf.cm, Lbf.ft, Lbf.in (Selectable)		Zero Balance		±2.0% F.S
Display	160*128 dot matrix LCD with Backlight		Non-linearity		0.03 _˜ 0.05% F.S
Overload	120% F.S.		Hysteresis
Display Mode	Data/Diagram		Creep(30min)
Measuring Mode	Track, Peak, First Peak, Preset		Temp. Effect		0.05%F.S./10 ˚C
Sampling Rate	2000 Hz		Safe Impedance		150%F.S.
Memory	1000 data		Input Impedance		350-415Ω
Outputs	USB, Set point output, RS232C		Output Impedance		350-5Ω
Power	3.6VDC Ni-MH rechargeable batteries Universal USB charger, Input:100-240VAC	Dimensions		145x73x34(mm)
		Weight		Display Unit 0.7 kg (1.5lb)
