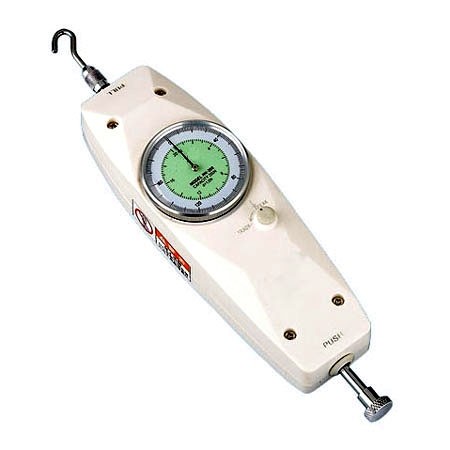

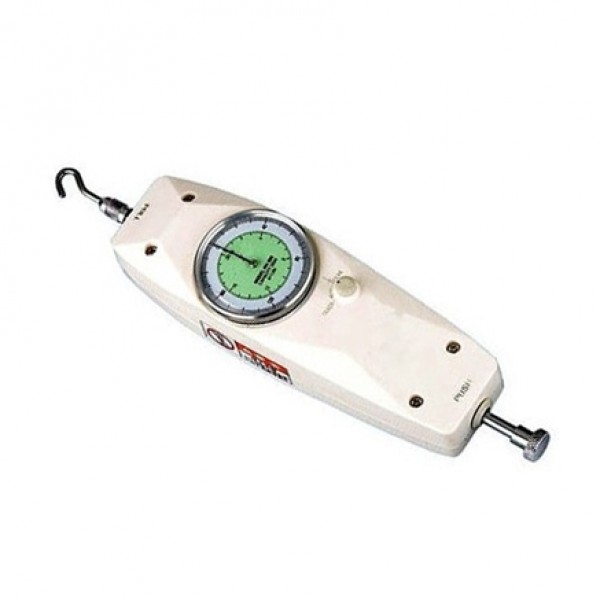

NK-10 Analog Force Gauge 10N เครื่องวัดแรงดึง แรงกด แรงผลัก

Description

Details

NK Series Analog Push Pull Gauge (0-500N) with compact size and high accuracy. They are easy to operate and handy. Single click on a knob on the device will convert the movement of the indication needle from the peak force indication (the needle stands still indicating peak force)to the tracking indication(the needle moves in accordance with change of force).As two types of scales (Newton scale and kilogram scale) are available and you can choose the most suitable graduation from the range of 10N(1kgf) to 500N(50kgf) for your measurement purpose.

Description:

Model	NK-10	NK-20	NK-30	NK-50	NK-100	NK-200	NK-300	NK-500
Capacity	10N	20N	30N	50N	100N	200N	300N	500N
Resolution	0.05N	0.1N	0.2N	0.25N	0.5N	1.0N	2.0N	2.5N
Stroke	10mm
Dimension	260x66x36mm (10.3x 2.6x1.45 inch)
