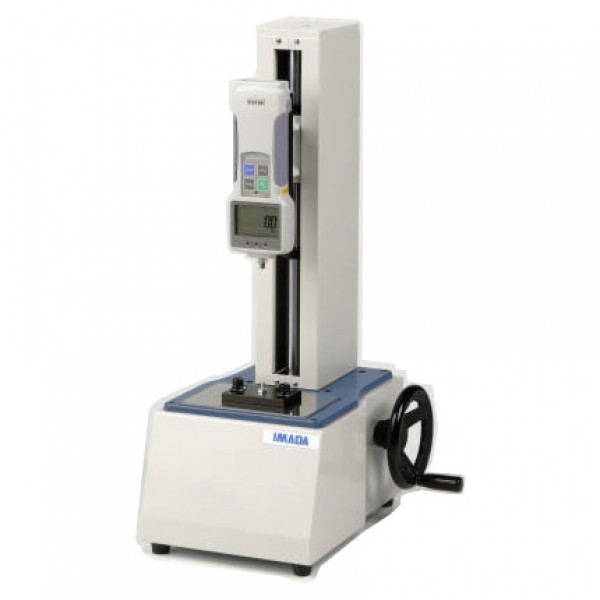

IMADA HV-500NII Vertical Test Stand แท่นทดสอบแรงดึงแรงกดระบบไฟฟ้า

Description

Details

APPLICATIONS:

Various material testing up to 500N (measuring of tensile strength, compressive strength, shearing strength and etc).
Analysis of mechanical parts for break point and free fit.

FEATURES:

Stable measuring by feed screw features with small step of the travel length.
Operation efficiency is excellent due to its spacious design.
Best price testing tool with light-wait and small size.
Optional scale unit implements scaling its travel length.

SPECIFICATIONS:

Model	HV-500NII	HV-1000N	HV-3000N
Capacity	500N (50kgf)	1000N(100kgf)	3000N(300kgf)
Stroke when a force gauge is mounted (*1)	275mm	379mm	379mm
Travel of a mounted force gauge	2mm / a complete turn of its handle	1.2mm / a complete turn of its handle	0.6mm / a complete turn of its handle
Function	Mechanical stopper
Size	Please refer to the dimensions and specifications
Weight	Approx.10kg	Approx.18kg	Approx. 24kg
Gauges that can be combined (*2)	Popular and standard model	Popular, standard, high capacity model
Gauges that can be combined (*2)	*Load cells cannot be combined.
Accessory	Grip mounting adaptor GF-1 (M6 thread)	Grip mounting adaptor GF-2（M10・M6 thread）
Option	Length meter, Long stroke		Length meter
