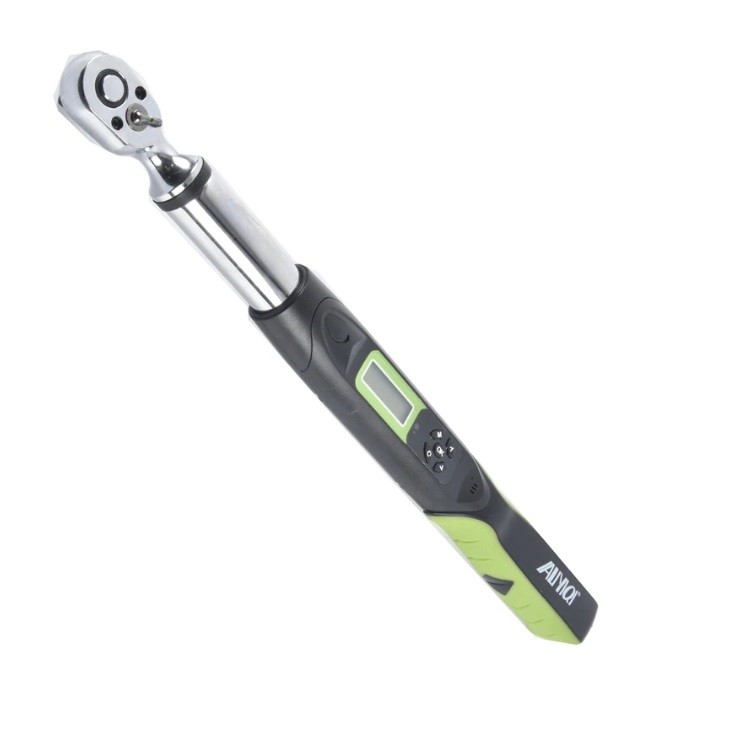

AWG6-500 ประแจทอร์คขนาด 500Nm Digital Torque Wrench

Description

Details

Features

Digital torsional readings
Accuracy +/-2 (range 20~100%)
Clockwise and counterclockwise both operated
Peak hold and real-time mode
Buzzer and LED indication (reach preset torque Value)
Four units (ft-lb, in-lb, N-m,kgf.cm)
100 records can be stored
Communication function
Auto-shut down within 5 minutes

Specifications

Model		AWG4-135	AWG4-200	AWG4-340	AWG6-500	AWG6-850
Square (inches)		1/2		3/4
Buzzer Setting Range (N.m)		6.75~135	10~200	17~340	25~500	42.5~850
Length (mm)		390		420
Accuracy		Clockwise:±2% Counterclockwise:±2.5%			Clockwise:±2.5% Counterclockwise:±3.5%
Data storage		100 records can be stored
Operating mode		Peak (P)/ Real-time (T)
Ratchet head Type		Bidirectional ratchet head
Number of ratchet teeth		36
Number of keys		5
Battery		1.5V AA batteries"2
Operating temperature		-10℃ to 60℃
Storage temperature		-20℃ to 70℃
Humitidy		90%(No condensation)
Drop Test Deight		1m
