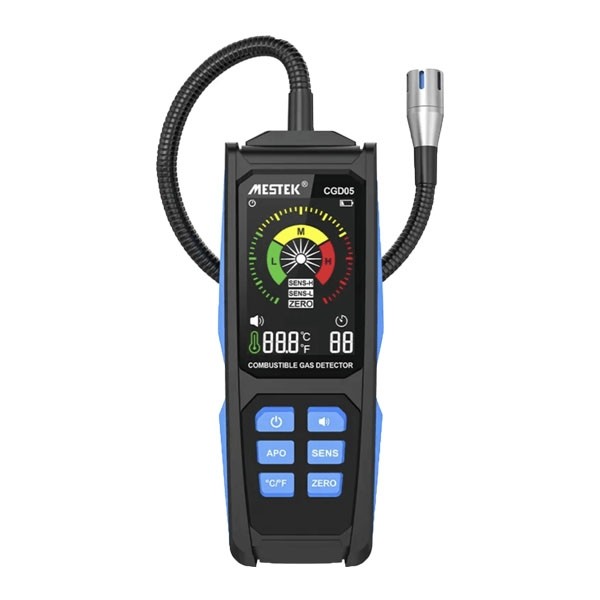

เครื่องตรวจจับแก๊ส CGD05A Combustible Gas Detector-0~100%LEL

Description:

The CGD05A combustible gas detector is an advanced gas detection device that integrates a color digital and analog bar display, providing intuitive digital readings and trend analysis at the same time. It supports gas concentration measurement in the range of 0~100%LEL and 50~50000PPM. The CGD05A also has a temperature measurement function of 0~50°C, which is convenient for real-time monitoring of ambient temperature changes and ensuring the accuracy of the detection environment. The measurement accuracy of the device is less than ±5%FS.

Specifications:

• Detecting gas: Natural gas, Coal gas and Liquefied petroleum gas
• Detection flow: 1L/min
• Gas resolution: 1%LEL/1PPM
• Temperature resolution: 0.1°C/0.2°F
• Gas measurement range: 0-100%LEL/50-50000PPM(Automatic)
• Temperature measurement range: 0~50°C/32~122°F±(1°C/2°F)
• Measurement accuracy: +5%FS
• Sampling mode: Diffusion type
• Response speed: 2 seconds
• Calibration mode: Automatic calibration after starting up for 30 seconds
• Automatic shut-down: About 10 minutes
• Color VA reverse display screen: Yes
• Type of alarm: Sound and Visual Alarm
• Warm up time: 30 seconds
• Length of flexible metal hose: 270mm
• Size: 130*73*33
• Weight: 270g
