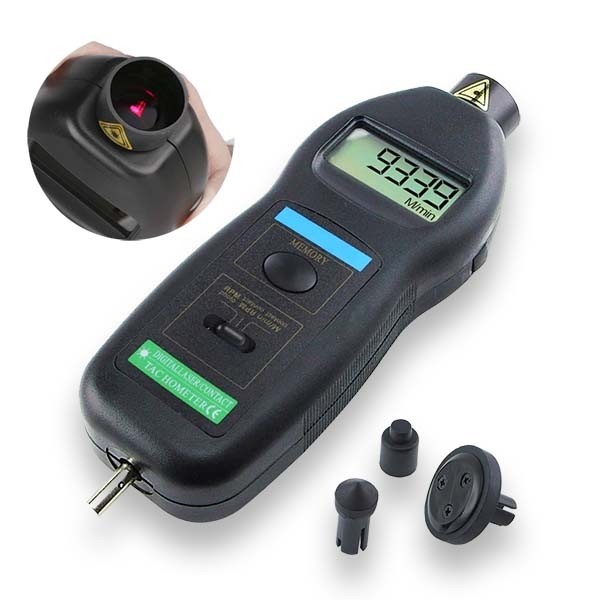

เครื่องวัดความเร็วรอบ DT-2236C 2 in 1 Digital Tachometer

Description

Details

Features:

Laser photo & surface contact measurements60)
Wide Measuring Range
With Auto Ranging and automatic low power indication
LSI-circuit and crystal time base mechanism for high accuracy & fast measuring time
Last value, maximum value and minimum value
Insignificant zero suppression
Durable & light weight
Tested according to European international guidelines and standards(CE Marking)

Specifications:

Measure in m/min
Display : 5 digits, 10mm LCD with function annunciation
Measurement

Photo Tach : 2.5 ~ 99,999 RPM
Contact Tach : 0.5 ~ 19,999 RPM
Surface Speed : 0.05 ~ 1,999.9m/min

Resolution:

Photo Tach :

0.1RPM (2.5 ~ 999.9 RPM)
1 RPM(over 1,000 RPM)

Contact Tach :

0.1 RPM (0.5 ~999.9 RPM)
1 RPM(over 1,000 RPM)

Surface Speed :

0.01 m/ min.(0.05~99.99 m/min)
0.1m/ min.(over 100 m/min)

Accuracy : ±(0.05% +1 digit)
Sampling Time : 0.8 sec (over 60 RPM)
Memory : Last value, Max. value, Min. value
Test Range Select : Automation
Time Base: Quartz crystal
Circuit : Exclusive one chip of microcomputer LSI circuit
Battery: 4 x 1.5AA Battery
Operation Temperature : 0~50°C(32~122°F)
Size : 215 x 65 x 38mm
Weight: 300g including battery
