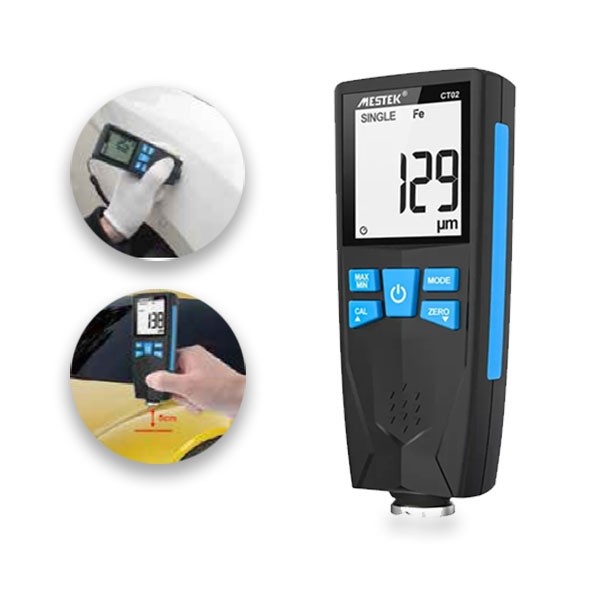

เครื่องวัดความสี CT02 Coating Thickness Gauge

Description:

Coating Thickness Gauge CT02 is suitable for measuring coating thickness of iron-based and aluminum-based materials. It measures iron-based materials based on magnetic induction technology and aluminum-based materials based on eddy current effect. The measuring range is 0~1500 microns, with a resolution of up to 0.1 microns. It provides two modes: single measurement and continuous measurement. It meets the detection needs of various industrial scenarios. It is widely used in the fields of automobile manufacturing, metal processing and quality control.

Specifications:

• Type: LCD
• Display: Iron base or aluminum base
• Measuring base: Iron base: magnetic induction
• Sampling method: Aluminum base: eddy current effect
• Measuring range: 0-1500um
• Resolution: 0.1um
• Accuracy: Iron base or aluminum base/+(3%+2um)
• Automatic shutdown: About 10 minutes
• Measurement mode: single/continuous
• Unit: um/mil
• The radius of the minimum convex curvature: 5mm
• The radius of the minimum concave: 50mm
• The diameter of the minimum measuring area: 20mm
• The minimum thickness of base material: Iron base or 0.5mm/aluminum base 0.3mm
• Working current: About 30mA
• Working environment: 0~50℃/10~80%RH
• Power: 2*1.5V AAA
• Size: 120*48*26(mm)
• Weight: About 95g(excluding battery)
