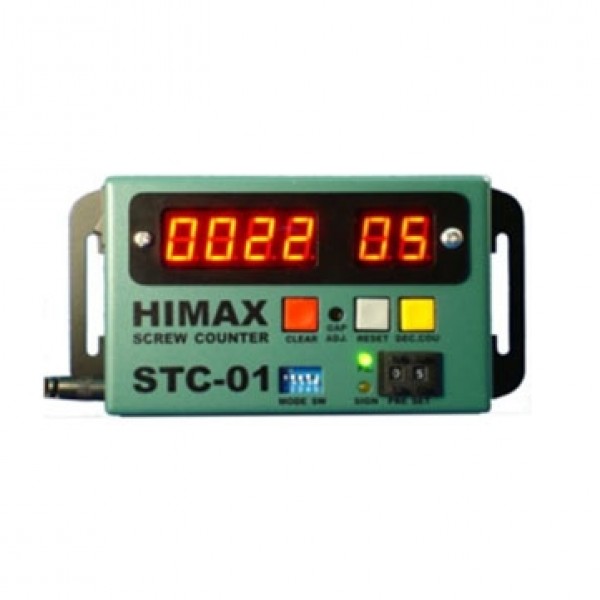

Screw Counter HIMAX STC-01 เครื่องนับสกรู

Description

Descriptions:

Fitted with CTL-50 power controller, can be used for HIMAX TL series electric screwdrive.
With screw counting function, it can preset the lock screw quantity required for the work piece to avoid missing out unlocked screws.
Count 1-99 screws according to the different quantity of screws that the work place needs to lock.
After locking the last screw, the buzzer gives a sound to prevent missing out and notify the end.
Each time after finish a work piece, the counter will be auto reset and immediately ready for next turn of operation. (Do not count for the second repeated locking operation of the same screw in a short period of time.)
It can adjust time judge according to the degree of difficulty of screw operation.
Prevent error counting and more other functions, convenient and practical.

Specifications:

Finished product counting range	0000~9999
Screw counting range	00~99
Input Signal	Contact type signal (such as relay's mechanical switch, semi-conductor's joint less signal ets.)
Input Signal
Input Power	DC 9V / 100mA
Dimension	126 x 80 x 25mm
Weight	360g
