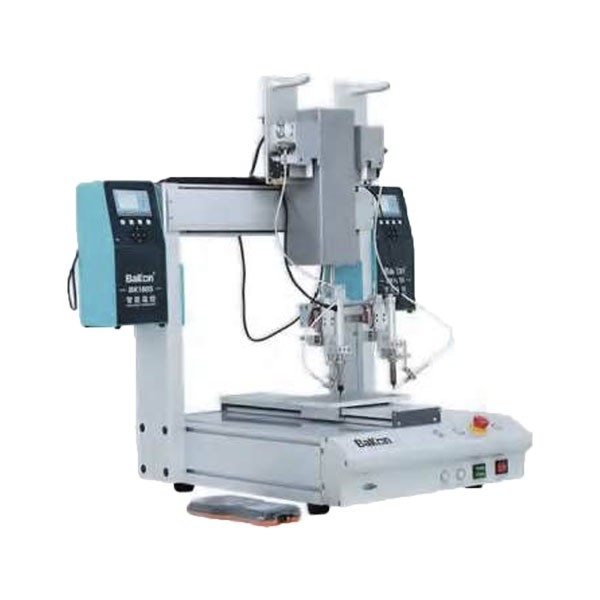

Double Y Automatic Soldering Machine

Description

Details

Description:

The Double Y Automatic Soldering Machine is designed for higher production efficiency. It can process two workpieces alternately or simultaneously, which helps to minimize idle time and increase overall productivity. This type of machine is especially suitable for production environments that require continuous operation and faster processing speeds while maintaining high soldering accuracy and consistent quality.

Specifications:

Machine Size: L763 × W610 × H780 mm
Single Working Volume: 460 mm × 610 mm × 108.5 mm
Drive Mode: Dual-axis precision stepper drive
Adjustable Speed: 1 - 800 mm/sec
Total Weight: 52 kg
Power System: Stepper motor, rotating motor (optional)
Repeatability: ±0.1 mm / ±0.05 mm
Workbench Load Capacity: 8 kg
Machine Load Capacity: 2 kg
Control System: Three-axis control system
Processing File Capacity: Up to 255 files
File Storage Capacity: Up to 999 files, up to 8000 points per single file
Supporting Documentation: CAD / CorelDRAW
Power Supply: 100 - 200V AC
