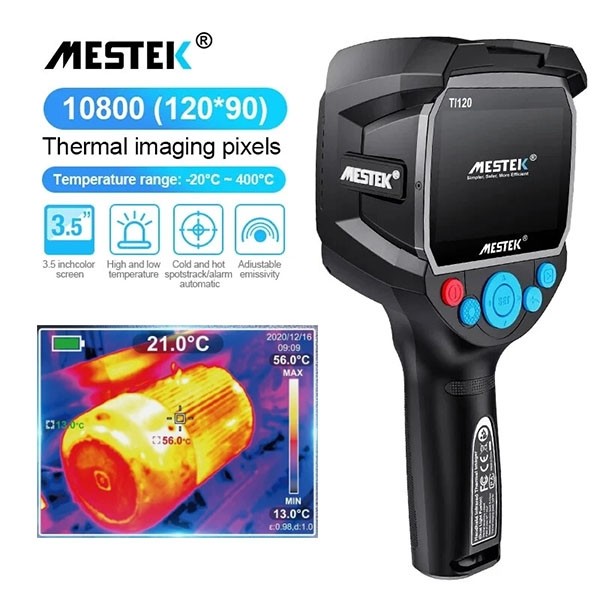

เครื่องสแกนภาพความร้อน TI120 Infrared Thermal Imager

Descriptions:

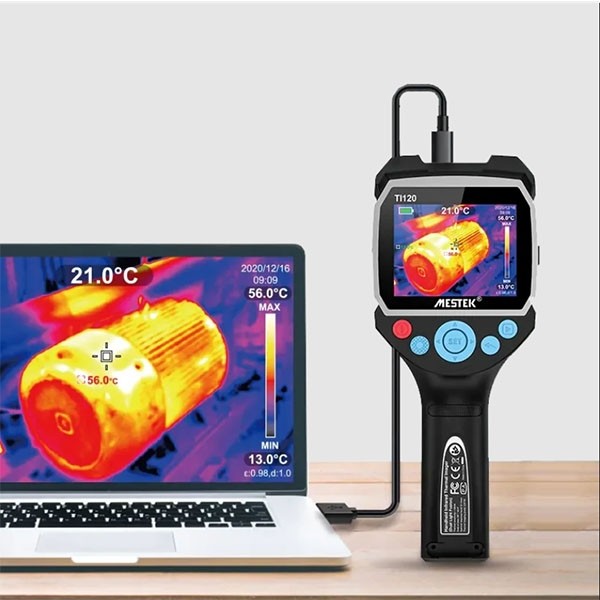

The professional infrared thermal imager TI120 is equipped with a 3.5-inch LCD display and a 120*90 pixel high-definition display. It provides professional data and clear infrared images. The IP65-level waterproof and dustproof design ensures its use in various working environments. The instrument has been tested for 1.5-meter drop resistance, which has higher durability and safety. TI120 has a built-in lithium battery and an 8GB micro SD card, and supports USB 2.0 charging, which is more convenient. The field of view is 50°*63.4°, and the measurement range covers -20°C to 400°C, providing accurate temperature detection. The device is suitable for maintaining the optimal measurement range of 0.5 meters to 1.2 meters. It supports point measurement and range measurement modes. It can automatically capture the highest point.

Specifications:

• IR resolution: 10800(120*90)pixels
• Field of view (FOV): 50° * 63.4°
• Thermal sensitivity (NETD): <60mk
• Temperature range: -20~400°C
• Frame rate: ≤ 20Hz
• Measurement accuracy: -20~0°C;±5°C/0~100°C;±3°C/ 100~400°C;+5%
• Measurable Distance Range: 0.5m~1.2m
• Display: 3.5″ LCD
• Auto capture of Hi/Lo temperature: √
• Measurement modes: Point, area
• Storage: External 8G Micro SD Card
• Drop proof: 1.5m
• Waterproof level: IP65
• Size: 238*95*85.5(mm)
• Weight: 540g
