Torque Tool SRT Series ไขควงวัดแรงบิด ไขควงวัดทอร์ค

Description

Details

DESCRIPTIONS:

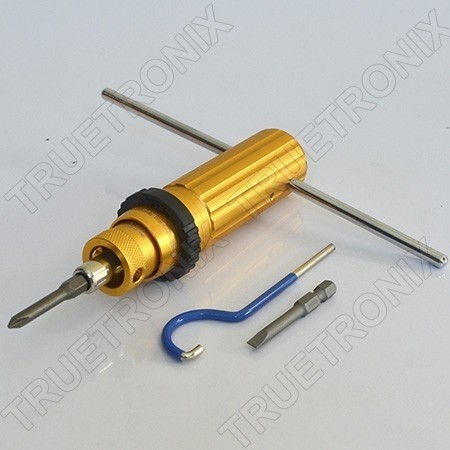

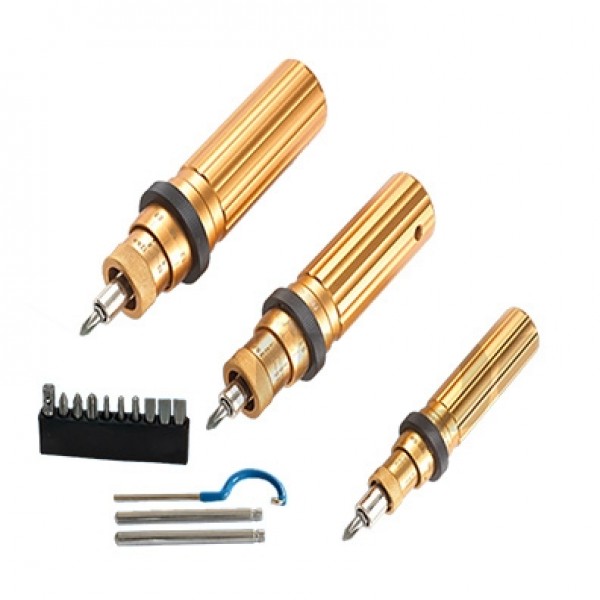

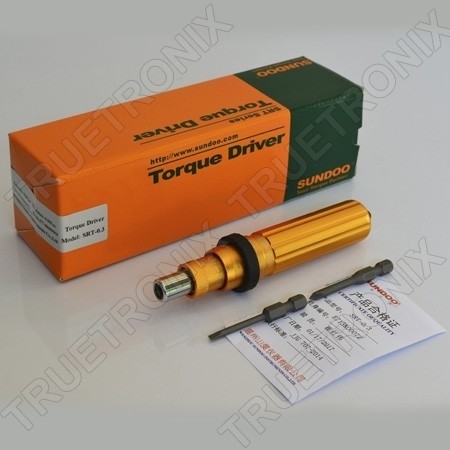

SRT Torque Driver is applied in fasten pieces which have torque request, it can fasten the fastener according to pre-set torque driver. The products have bidirectional load, may pre-set the torque value, if surpasses the setting value, the driver will be idling, it can control the dynamics of thread effectively.

SPECIFICATIONS:

Model	SRT-0.3	SRT-0.6	SRT-1.2	SRT-3	SRT-6	SRT-12
Capacity	0.1~0.3N.m	0.2~0.6N.m	0.4~1.2N.m	1~3N.m	2~6N.m	4~12N.m
Min scale	0.05N.m	0.01N.m	0.02N.m	0.05N.m	0.1N.m	0.2N.m
Accuracy	±5%
Length	122mm			137mm		148mm
Dimension	27.1x121.6mm			36.2x136.2mm		40x147.5mm
Tie-in dimension	6.35mm
Apply	M1	M2	M3	M4	M5	M6
Wight	0.12kg			0.24kg		0.26kg
