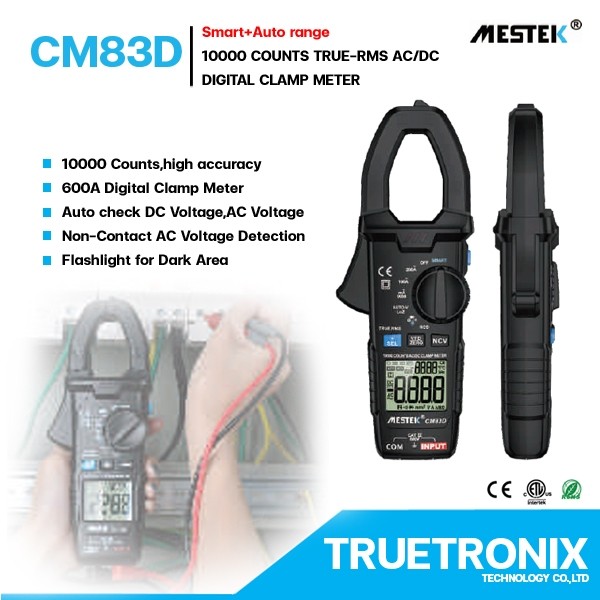

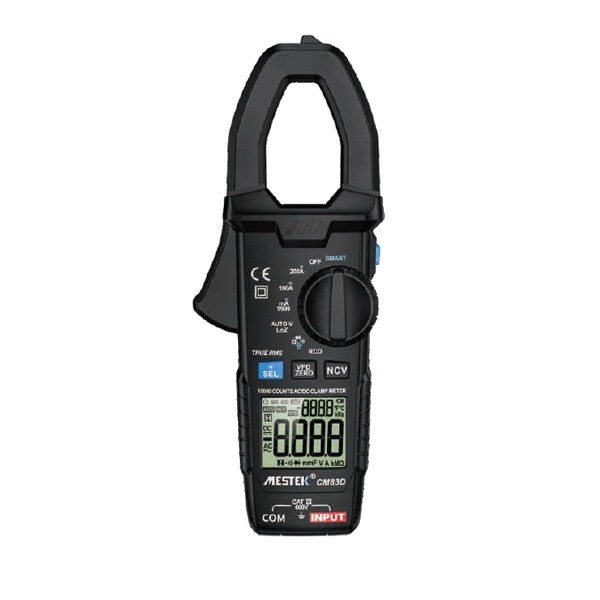

แคลมป์มิเตอร์ CM83D 10000 Counts True-RMSAC/Dc Digital Clamp Meter

Description

Details

SPECIFICATIONS

Model	CM83D
Specifications	Range	Accuracy
DC Voltage	10V/100V/600V	± (0.8%+5)
AC Current	10V/100V/600V	± (1.2%+5)
DC Current	9999mA/10A/100A/600A	± (4.0%+10)
AC Current	9999mA/10A/100A/600A	± (4.0%+10)
Resistance	1000Ω/10kΩ/100kΩ/ 1MΩ/10MΩ	± (1.0%+2)
Capacitance	1000nF/10µF/100µF	± (3.0%+5)
	1mF/60mF	± (4.0%+5)

FEATURE

Feature
Continuity Buzzer	<30Ω
Jaw Opening	Φ32mm
Diode	/
Data Hold	/
Backlight	/
Flashight	/
Auto Power off	/
Non-contact AC Voltage Detetion	/
RCD Leakage Testing	30mA
Input Impedance	1MΩ
Low Battery Indication Lower than	2.4V
General
Batteries	2 x1.5V AAA
Size	195 x 50 x35mm
Weight	About 195g
Safety Level	EN61010-2-032 ,CAT III 600V
Standard Accessories	Digital Clamp Meter Probe- Carrying Bag-Batteries-User Manual-Color Box
