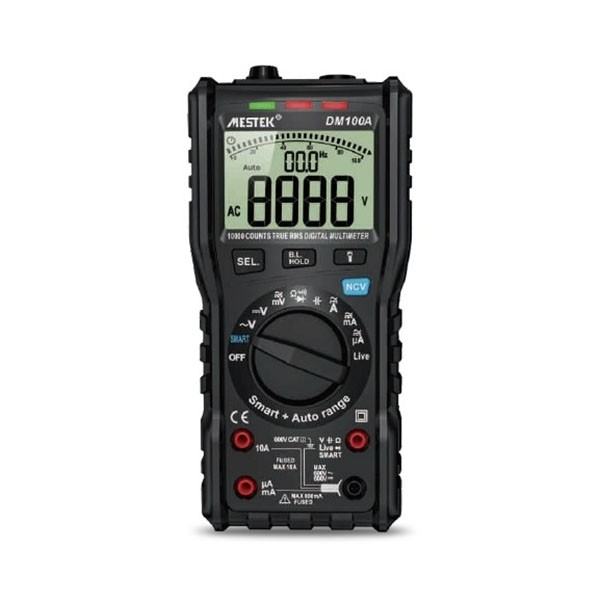

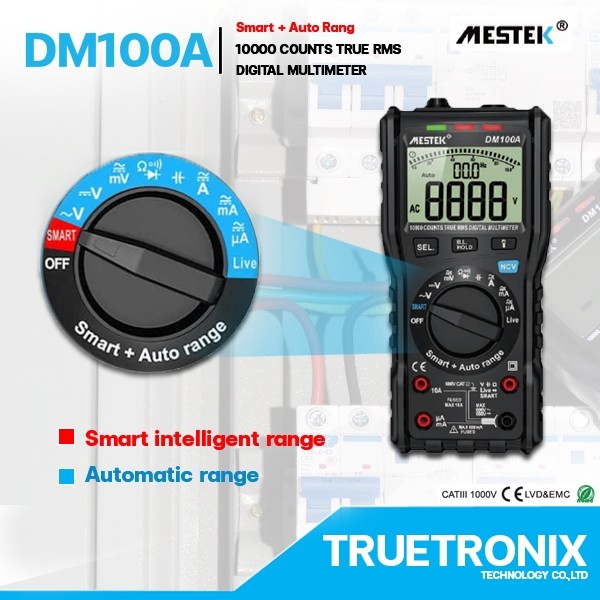

มัลติมิเตอร์ DM100A Smart+Auto range True RMS Digital Multimeter

Description

Details

FEATURE

Display	10000 Counts
Autoranging	/
ACV/ACA TRMS	/
ACV(bandwidth)	1kHz
Ω	100MΩ
Capacitance	10mF
Continuity	Sound and LED Alarm
Diode Test	/
General
Batteries	2 x1.5V AA
Size	190 x 89 x 50mm
Weight	About 500g
Safety Level	IE61010-1: 2020 ,CAT III 1000V
Standard Accessories	Multimeter-Probe -Batteries-User Manual-Color Box

SPECIFICATIONS

Model	DM100A
Specifications	Range	Accuracy
DC Voltage	1V 10V/100V /1000V
AC Voltage	1V/10V/100V/750V
DC mVoltage	1000mV	± (0.5%+3)
AC mVoltage	1000mV	± (1.0%+10)
DC Current	100µA/100mA/600mA/10A	± (1.2%+3)
AC Current	100mA/600mA/10A	± (1.5%+3)
Capacitance	10nF/100nF/1000nF/10µF/100µF/1000µF/10mF	± (5.0%+3)
Resistance	1000Ω/ 10K /100kΩ/ 1000KΩ/10MΩ	± (0.8%+3)
	100mΩ	± (1.2%+30)
