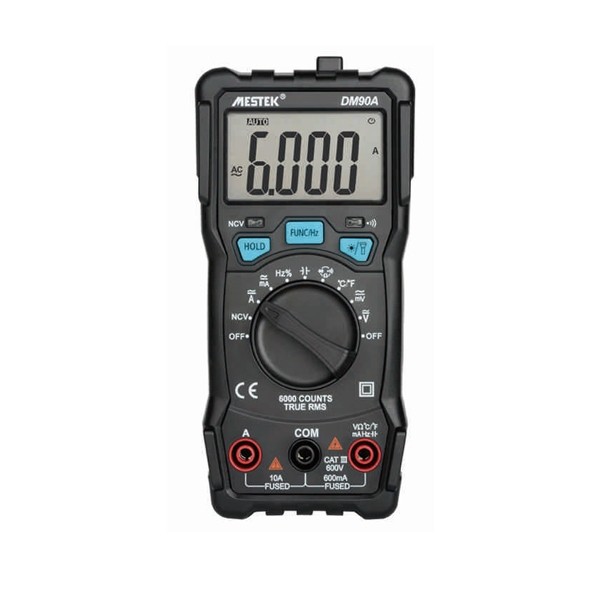

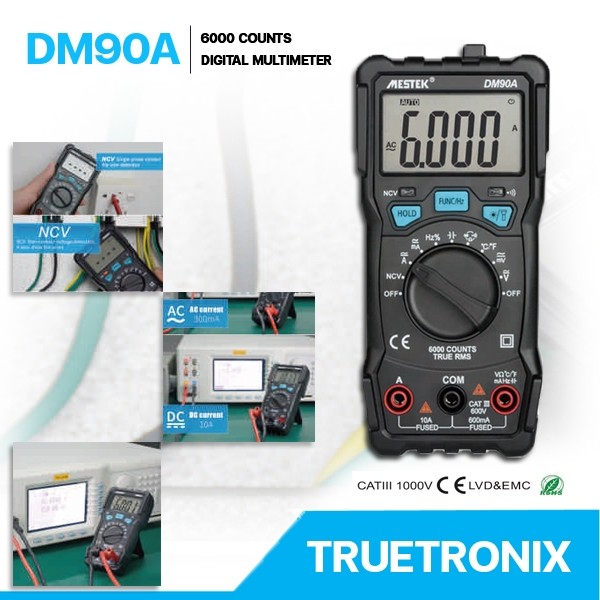

มัลติมิเตอร์ DM90A 6000 Counts Digital Multimeter

Description

Details

Feature

Continuity Buzzer	<30Ω
Diode	Yes
Data Hold	Yes
Backlight	Yes
Flashlight	Yes
Auto Power off	Yes
Non-contact AC Voltage Detection	Yes
Display	6000 Counts
Temperature °C/°F	Yes
General
Batteries	3 x1.5V AAA
Size	147 x 71 x 45mm
Weight	About 220g
Safety Level	EN 61010-2-033,CAT III 300V
Standard Accessories	Multimeter-Probe-K Type Thermocouple-Batteries-User Manual-Color Box

Specifications

Model	DM90A
Specifications	Range	Accuracy
DC Voltage	600mV /6V/ 60V /6000V	± (0.5%+3)
AC Voltage	6V/60V/600V	± (1.0%+4)
DC Current	60mA/600mA	± (1.2%+5)
	10A	± (3.0%+5)
AC Current	60mA/600mA	± (1.5%+5)
	10A	± (3.0%+5)
Resistance	6000Ω/ 6K /60K /600KΩ/ 6MΩ/60MΩ	± (0.8%+5)
Capacitance	60nF/600nF/6uF	± (4.0%+5)
	60µF/600µF/6mF	± (4.0%+5)
Frequency	60Hz/600Hz/6KHz/60KHz	± (0.8%+5)
K Type Temperature	-20°C~1000°C/-4°F~1832°F	± (1.0%+5)
Duty Cycle	1%~99%	± 2.0%
