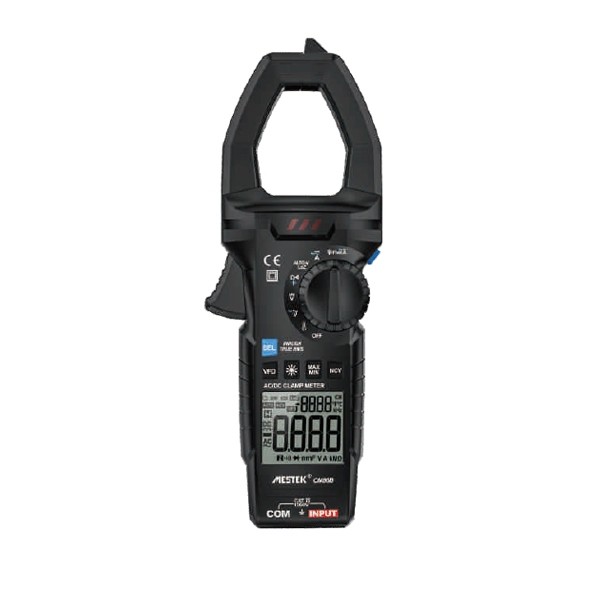

แคลมป์มิเตอร์ CM86B 10000 Counts Digital Clamp Meter

Description

Details

SPECIFICATIONS

Model	CM86B
Specifications	Range	Accuracy
DC Voltage	6V/60V/600V/1000V	± (0.8%+5)
AC Voltage	6V/60V/600V/1000V	± (1.2%+5)
DC Current	6A/60A/600A/1000A	± (4.0%+10)
AC Current	6A/60A/600A/1000A	± (4.0%+10)
Resistance	600Ω/ 6kΩ /60kΩ/600kΩ/6MΩ/60MΩ	± (1.0%+2)
Capacitance	100nF/1000nF/10µF/100µF/1000µF/10mF	± (3.0%+5)
K Type Temperature	-20°C~1000°C/-4°F~1832°F	± (2.0%+2)

FEATURE

Continuity Buzzer	<30Ω
Jaw Opening	Φ35mm
True-RMS	Yes
Data Hold	Yes
Backlight	Yes
Flashight	Yes
Auto Power off	Yes
Non-contact AC Voltage Detetion	Yes
Input Impedance	1MΩ
Low Battery Indication Lower than	2.4V
General
Batteries	2 x1.5V AAA
Size	254 x 92 x45mm
Weight	About 450g
Safety Level	EN61010-2-032 ,CAT III 600V
Standard Accessories	Digital Clamp Meter Probe- Carrying Bag-K Type Thermocouple -Batteries-User Manual-Color Box
