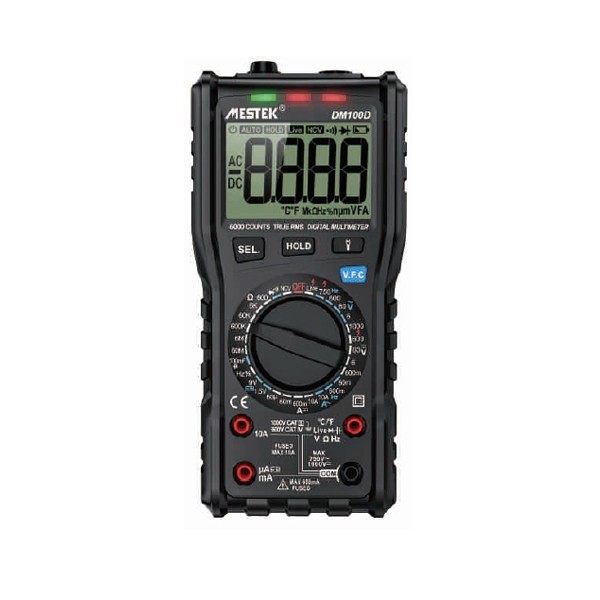

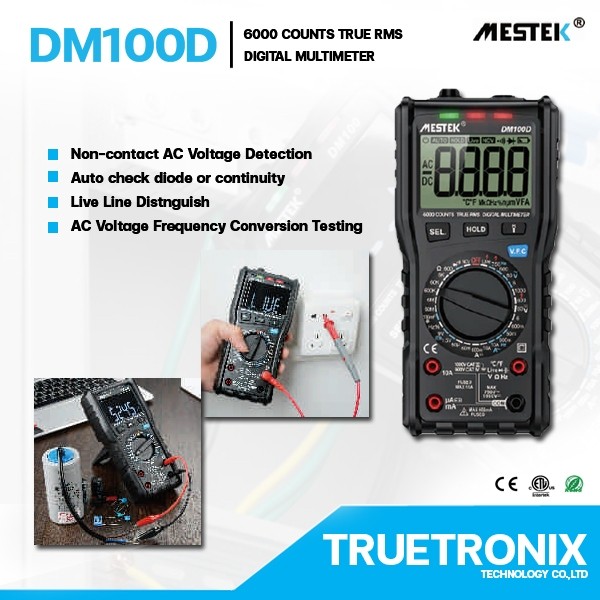

มัลติมิเตอร์ DM100D 6000 Counts True RMS Digital Multimeter

Description

Details

SPECIFICATIONS

Model	DM100D
Specifications	Range	Accuracy
DC Voltage	600mV/6V/60V/600V/1000V	± (0.5%+3)
AC Voltage	600mV/6V/60V/600V/750V	± (1.0%+10)
DC Current	60µA/60mA/600mA/10A	± (1.2%+3)
AC Current	60mA/600mA/10A	± (1.5%+3)
Capacitance	60nF/600nF/6µF/60µF/600µF/100mF	± (5.0%+5)
Resistance	600Ω/ 6KΩ/60KΩ/600KΩ/6MΩ	± (0.8%+3)
	60MΩ	±(1.2%+30)
Frequency	6Hz/60Hz/600Hz/60KHz/600KHz/6MHz/10MHz	±(1.0%+3)
Duty	5%~95%	±(2.0%+3)

FEATURE

Display	6000 Counts
ACV/ACA TRMS	/
ACV(bandwidth)	1kHz
Battery Voltage Testing	1.5V/9V
Ω	60MΩ
Capacitance	10mF
Continuity	Sound and LED Alarm
Dode Test	/
General
Batteries	2 x1.5V AA
Size	195 x 89 x50mm
Weight	About 500g
Safety Level	IE61010-1: 2020 CAT III 600V
Standard Accessories	Multimeter-Probe -Batteries-User Manual-Color Box
