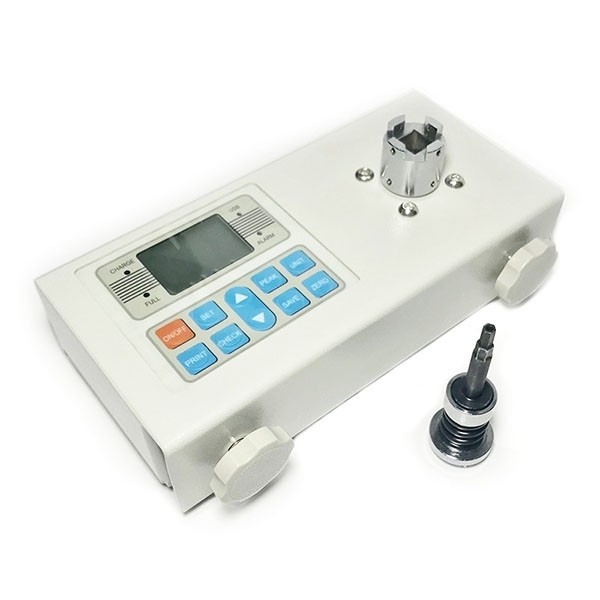

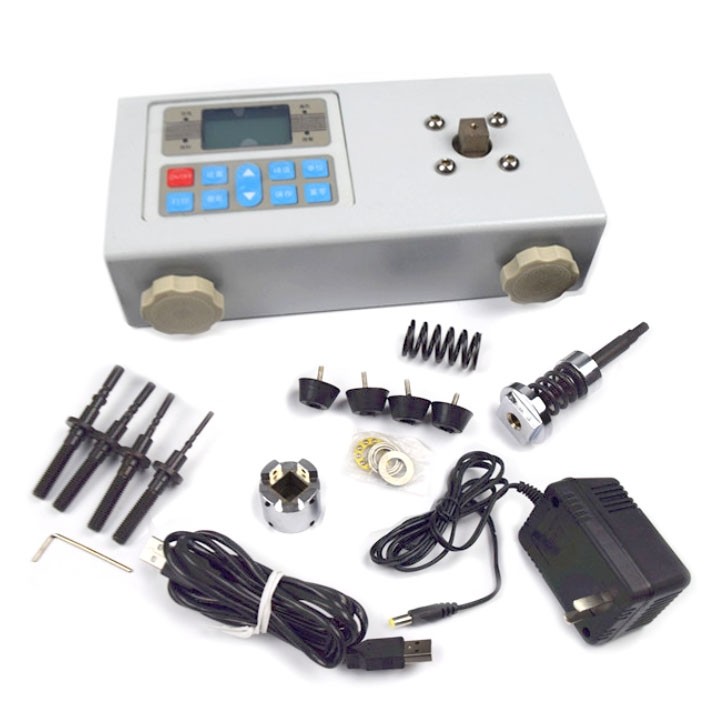

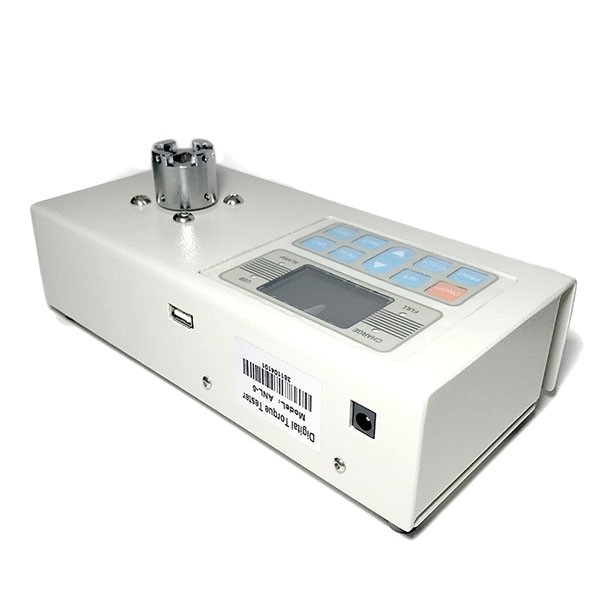

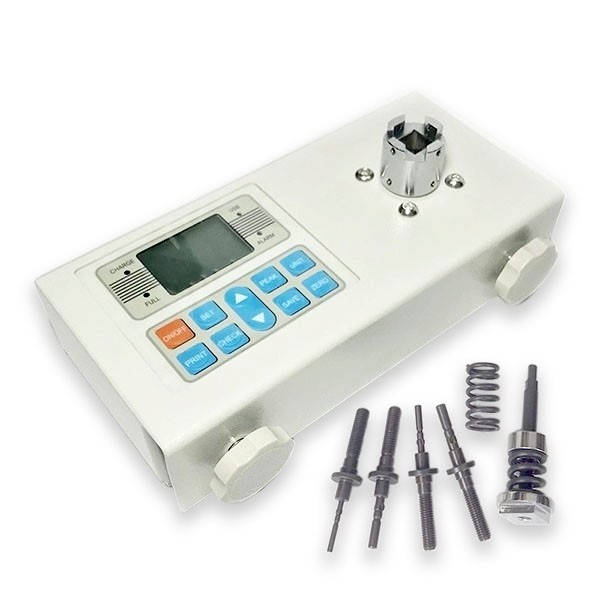

ANL-5 ทอร์คมิเตอร์วัดแรงบิด 5Nm Digital torque meter

Description

Details

FEATURES:

ANL Series Digital Torque Gauge is R&D for testing and measuring many kinds of torque. The Meter is applied with the measured and calibrated torque of motorize or air-driving clamps, torque screwdriver and torque spanner. It is applied with the test of wrench force, wrest fractured force. The gauge is used in Electric industry, Light industry, Machinery manufacture, Scientific research, and so on.

SPECIFICATIONS:

Model		ANL-1	ANL-2	ANL-5	ANL-10	ANL-20
Measuring range / Division value	N.m	1.0000/0.0001	2.0000/0.0001	5.0000/0.0001	10.000/0.001	20.000/0.001
	Kgf.cm	10.210/0.001	20.421/0.001	51.052/0.001	102.10/0.01	204.21/0.01
	Ib.in	8.862/0.001	17.724/0.001	44.311/0.001	88.62/0.01	177.24/0.01
Precision		±1%(10%~100% of full scale)
Peak Value Sampling Frequency		2000HZ
Power		8.4V 1.2Vx7 Ni-MH Battery Group
Charging time		4-6 Hours
Continuous using time of battery		About 10 Hours
Battery life		≥300 times
Size		230mm x 70mm x 125mm
Net Weght		2KG
Power adapter		Input: AC 110-220V 50Hz Output: DC 12V 500mA
