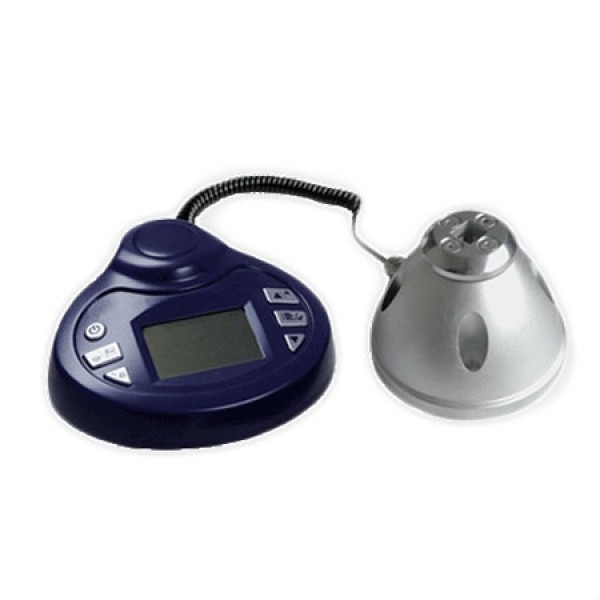

ETTC Digital Torque Tester เครื่องทดสอบแรงบิดเซ็นเซอร์ภายนอก

Description

Details

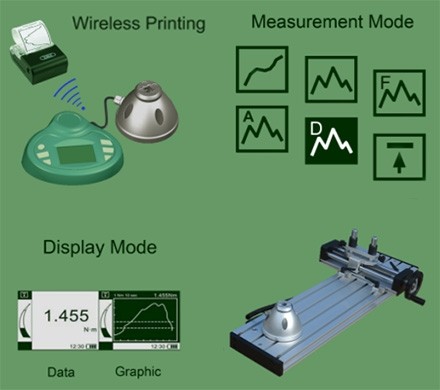

FEATURES:

Range: 5%C ~ 100%C
Accuracy: ±0.3%
Display Mode: Data/Graph
Measuring Mode: Track, Peak, First Peak, Double Peak, Preset, Auto Peak, etc.
Units: N*m,N*cm,kgf*cm,lbf*ft,lbf*in
Printing: Wireless Printer
Multiple data interfaces, USB to PC, RS232C
Automatic load cell identification (ALI)

SPECIFICATIONS:

Model	Capacity/Resolution.					Interface
Model	N*m	N*cm	kgf*cm	lbf*ft	lbf*in	Interface
ETTC5	0.25~5/0.0005	25~500/0.05	2.5~50/0.005	0.18~3.7/0.0005	2.2~44.3/0.005	☐ 12.5(1/2")
ETTC10	0.5~10/0.001	50~1000/0.1	5~100/0.01	0.37~7.4/0.001	4.4~88.5/0.01	☐ 6.3(1/4")
ETTC20	1~20/0.002	100~2000/0.2	10~200/0.02	0.7~14.8/0.002	8.9~177/0.02	☐ 12.5(1/2")
ETTC50	2.5~50/0.005	250~5000/0.5	25~500/0.05	1.8~36.8/0.005	22~443/0.05	☐ 10(3/8")
ETTC100	5~100/0.01	500~10000/1	50~1000/0.1	3.7~74/0.01	44~885/0.1	☐ 19(3/4")
ETTC200	10~200/0.02	-	100~2000/0.2	7.4~148/0.02	89~1770/0.2
ETTC500	25~500/0.05		250~5000/0.5	18.4~368/0.05	220~4425/0.5
ETTC800	40~800/0.1		400~8000/1	29.5~590/0.1	354~7080/1

-

ETTC Torque meter.pdf
