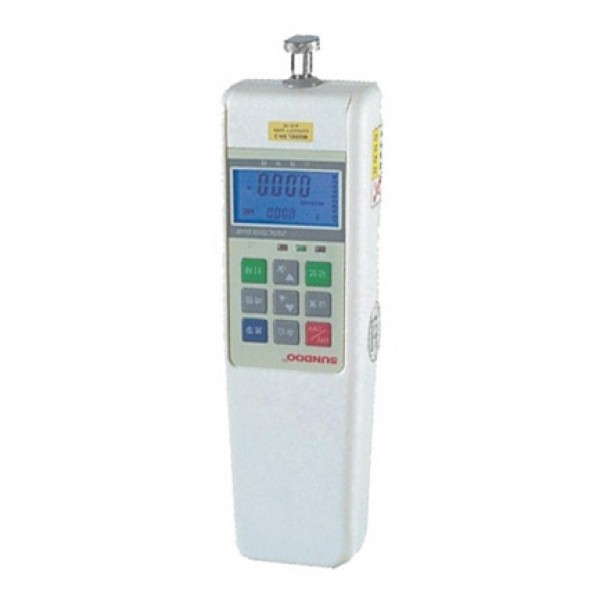

Digital force gauge SUNDOO SH 2N-500N เครื่องวัดแรงดึงแรงกดแบบดิจิตอล

Description

Product Descriptions:

High accuracy & High resolution: Accuracy: ±0.5% Min resolution : 0.001N;
Peak holding and auto-releasing function: Catching and holding the peak value in test, the peak holding time can be set (1-10 seconds);
Comparing function: Initial input of the tolerance limit (Max/Min) enables the device to judge the measured result as Go (Green pilot lamp)/NG(Red pilot lamp);
Memory functions: Memory 10 testing data, and calculate the average;
Units conversion: Converting three units (N, kgf, ibf) automatically;
LCD screen direction turning function: Pressing the unit key for 3 seconds, the LCD screen will change its direction;
Automatic power off function: Power off time (1-60minutes) can be set yourself;
RS-232C output: Transmitting the data to Printer or computer, saving it into "Excel" for analysis or printing; Patent number:ZL200430151019.3,ZL200620013022.2.

Specifications:

Model	SH-2	SH-10	SH-20	SH-50	SH-100	SH-200	SH-500
Caoacity	2N	10N	20N	50N	100N	200N	500N
Load Resolution	0.001N	0.005N	0.01N	0.01N	0.05N	0.1N	0.1N
Sensor Conformation	Sensor Inside
Range	10%~100% FS
Inaccuracy	±0.50%
Power and Using	Nickel Hydride Battery, Can be used 40 hours when changed fully, standby time about 3 months
Adaptor	AC 220V 300mA Input, DC 12V 300mA Output
Weight	1.8kg with the packing box
