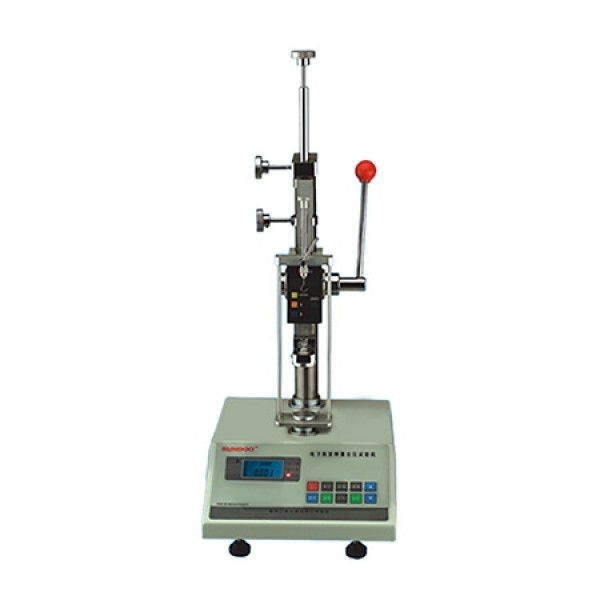

Digital Spring Tension Tester แท่นทดสอบแรงดึงคอยล์สปริง

Description

Details

PRODUCT DESCRIPTIONS:

SD Series Digital Spring Tester is especially designed and manufactured for spring tension and compression measurement.

PRODUCT FEATURES:

High accuracy and high resolution
Real-time value and peak hold
Upper and lower limit setting, red/green indication lamp, buzzer alarm inside
Three units option: N/kgf/lbf
10 groups values memory, automatically calculate average.
Printer inside, print storage data
Auto-off design without any operation

SPECIFICATIONS:

Model	SD-10	SD-20	SD-30	SD-50	SD-100	SD-200	SD-300	SD-500	SD-1000	SD-2000	SD-5000
Capacity	10N	20N	30N	50N	100N	200N	300N	500N	1000N	2000N	5000N
Load Resolution	0.001N	0.002N	0.01N	0.01N	0.02N	0.05N	0.1N	0.1N	0.2N	0.5N	1N
Test Travel	65mm			95mm					150mm
Distortion Resoluion	0.01mm			0.01mm					0.01mm
Platen Diameter	Φ30mm			Φ49mm					Φ108mm
Max Free Testable	65mm			95mm					200mm
Measuring range	5%~100% FS
Inaccuracy	±1% (within)
Power	220±10%V 20W
Dimension	300x235x600mm			300x235x620mm					490x300x920
Weight	about 13.2kg			about 17.3kg	about 19.1kg			about 20.8kg	about 47.5kg
