SH-500B Digital Push Pull Force Gauge เครื่องวัดแรงดึงแรงกดแบบดิจิตอล

Description

Details

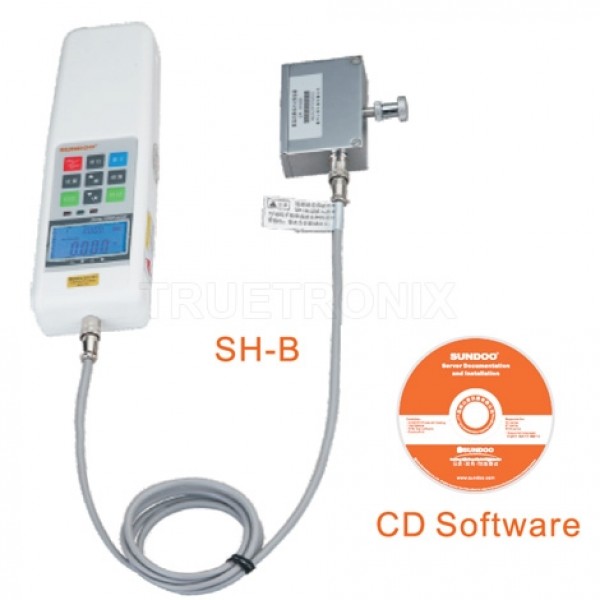

SH-B Series Digital Push Pull Force Gauge

This force gauge is compact and multifunctional test gauge with split-tiype design.Is is applied for conpression and tension test/insertion and extraction test/breaking test. Digital display, high accuracy and high resolution, high-efficiency test performance.

Characteristics

Split-type design for special product test.
Peak hold time (1-10 seconds) setting.
Upper and lower limit setting, red/green indicator lights and buzzer alarm.
10 test value storage, average calculation function.
Select units: N/Kgf/1bf.
Auto-off time setting (1-60 minutes) without operation.
RS232 output, connection to software, force curve view, data saving for analysis and printing.
Patent number: ZL200620013022.2/ZL200610072362.7.

CD Software

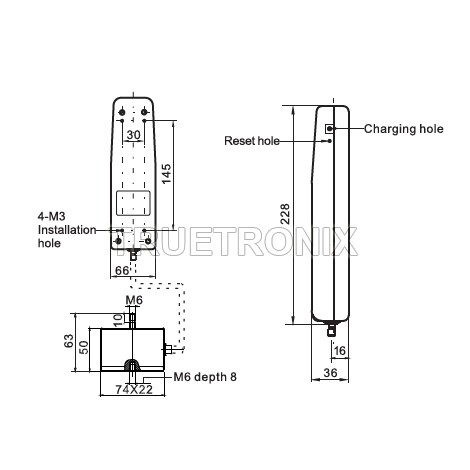

Sensor Dimension

Model	SH-2B	SH-5B	SH-10B	SH-20B	SH-50B	SH-100B	SH-200B	SH500B
Capacity	2N	5N	10N	20N	50N	100N	200N	500N
Resolution	0.001N	0.001N	0.005N	0.01N	0.01N	0.05N	0.1N	0.1N
Sensor Type	Sensor outside
Test range	10%~100% FS
Accuracy	Within ±0.5%
Power	8.4V 1.2Vx7 Nickel hydride battery; Charging time: about 4 hours; Continuous use for 40 hours after charging fully; Standby time: 3 months; Battery life ≥300 times
Adaptor	Input: AC 220V 50Hz output: DC 12V 300mA
Weight	About 1.2kg
