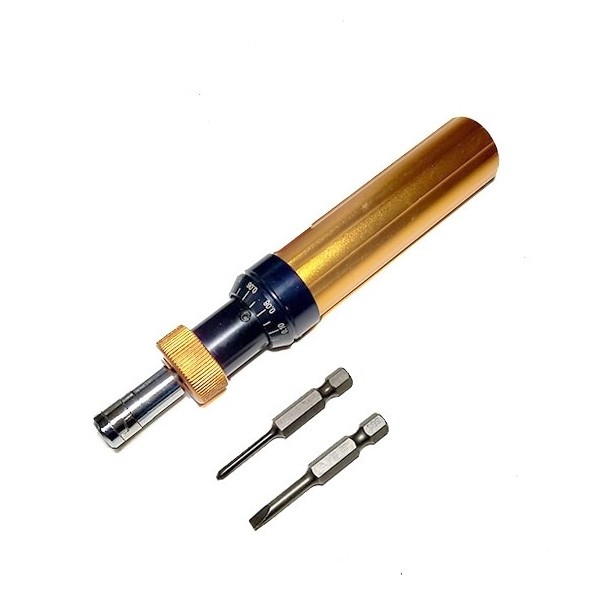

ไขควงทอร์ค ASQ-1.2 Preset Torque screwdriver

Description

Operation Example

According to the fastener tightening torque range required for choosing the right type of torque screwdriver;
According to the fastener tightening torque needed when the specified torque value;
Press the adjusting handwheel,Rotate the hand wheel adjustment,To achieve the desired torque value,

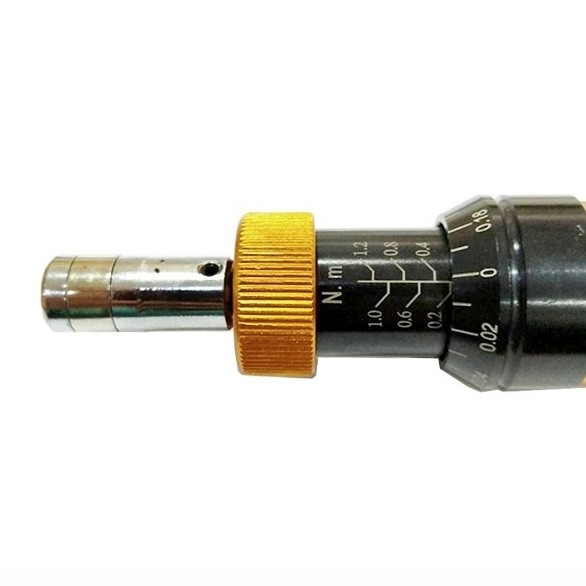

Working torque value is the value of Main scale showing add vice-scal showing;
As shown in [Figure 1] Torque values：1+0.2=1.2N.
You can complete the setup will hand release.
According to the head of the fastener in the form（Cross, straight, Plum Flower etc.）
From the attachment to select the appropriate screwdriver.Insert it into the idling torque screwdriver head hex fitting
(If no suitable attachment head can be self-processed batch batch header connection,Hex fitting size shows【Figure 2】)
Handheld screwdriver handle to align fasteners,Turn idle torque screwdriver,Until the fastener tightening torque reaches the value set

Specifications:
