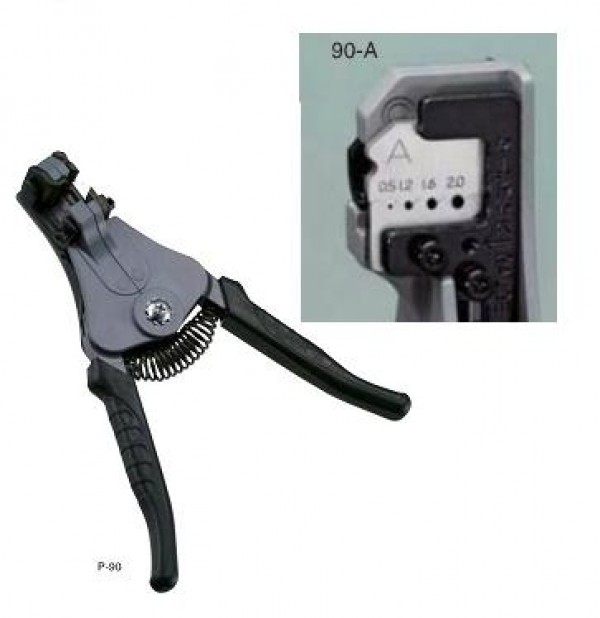

P-90-A WIRE STRIPPERS คีมสำหรับปอกสายไฟ

Description

Details

SPECIFICATIONS:

With adjustable stop. Stripping length can be set within a 4 to 25 mm range.
Weight(g): 350
Handle color: Green

AWG No.				24				16	14	12
Min. single wire outer dia. (mm)				0.51				1.28	1.61	2.03
Stranded wire min. cross-sectional area mm²				0.2	(JIS)	(JIS)	(JIS)	1.28	2.04	3.24
Stranded wire min. cross-sectional area mm²				0.2	0.5	0.75	1.25	1.28	2.04	3.24
Stranded wire outer dia. mm				0.6	0.9	1.07	1.35	1.6	1.95	2.4
Stranded wire outer dia. mm				0.7	0.98	1.15	1.47	1.8	2	2.5
P-90-A	Hole indications	Single wire mm	Single wire	0.5				1.2	1.6	2
P-90-A	Hole indications	Single wire mm	Stranded wire		1.2	1.6	2
