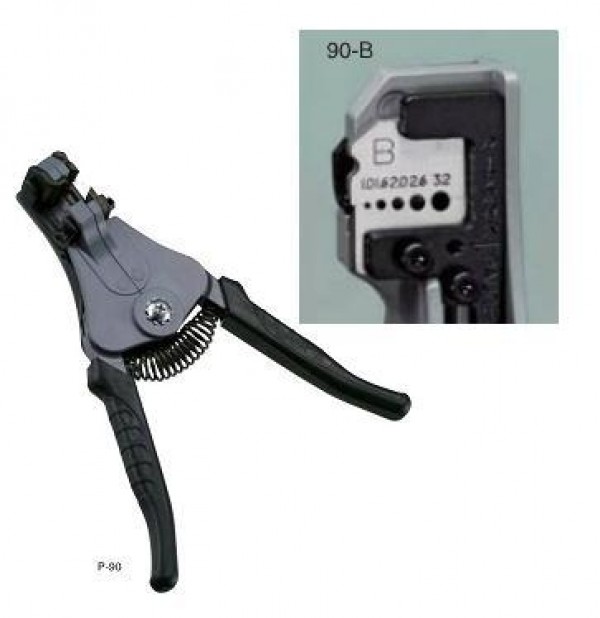

P-90-B WIRE STRIPPERS คีมปอกสายไฟแบบออโตเมติก

Description

SPECIFICATIONS:

AWG No.						18			14	12	10	8
Min. single wire outer dia. (mm)						1.02			1.61	2.03	2.56	3.28
Stranded wire min. cross-sectional area mm²				(JIS)	(JIS)	0.81	(JIS)	(JIS)	2.04	3.24	5.16	8.2
Stranded wire min. cross-sectional area mm²				0.3	0.75	0.81	1.25	2	2.04	3.24	5.16	8.2
Stranded wire outer dia. mm				0.69	1.07	1.2	1.35	1.8	1.95	2.4	2.6	3.9
Stranded wire outer dia. mm				0.75	1.15	1.4	1.47	1.86	2	2.5	3.1	4.4
P-90-B	Hole indications	Single wire mm	Single wire			1			1.6	2	2.6	3.2
P-90-B	Hole indications	Single wire mm	Stranded wire	1	1.6		2	2.6
