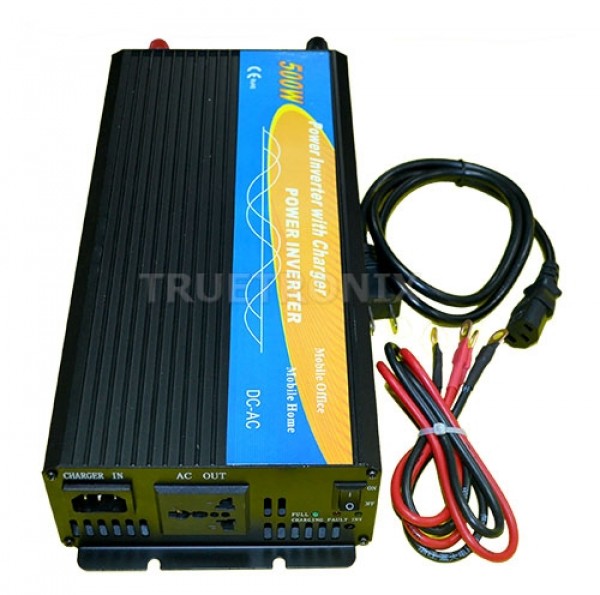

อินเวอเตอร์ Pure Sine+Charger 12V เป็น 220V ขนาด 500 วัตต์

รายละเอียด

Product Applications

Household Appliances: compact microwave ovens, bread makers, food processors, small bar refrigerators, small vacuum cleaners, fluorescent and incandescent lights, sewing machines and fans
Power Tools: drills, jigsaws, sanders and buffers
Entertainment Electronics: televisions, VCRs, video games, stereos, musical instruments and satellite equipment
LED display shows output power and watt consumption

Specifications:

Model No.			KSC-500W
Output	AC Voltage		220V
	Rated Power		500W
	Peak Power		1000W
	Waveform		Pure sine wave(THD<3%)
	Frequency		50 or 60Hz(±2%)
	LED Indicator		Green LED for power on
			Red LED Fault Status
Input	No Load Current Draw		<0.5A
	DC Voltage		12V
	Voltage Range		10.5~15.0VDC
	Efficiency		about 90%
Charger	Max circuit charger	12V	10A
	Feature		Automatic switching
Protection	Bat. Low Alarm		10.5V
	Bat. Low Shutdown		10.0V
	Over Load		Shut off output voltage, re-power on to recover
	Over Voltage		15.5+/-0.5V
	Over Temperature		Shut off output voltage, re-power automatically after temperature goes down
	Output Short		Shut off output voltage, re-power on to recover
Environment	Working Temp.		0~+40°C
	Working Humidity		20% ~ 90% RH non-condensing
	Storage Tem. Humidity		-30°C~+70°C/22°F~+158°F
Others	Dimension		440×410×330mm(L×W×H)
	Packing		13.1+/-0.5 kg
	Application		Home and Office appliances, Power tools and Portable equipment, Vehicle, Yacht and Solar power system…
