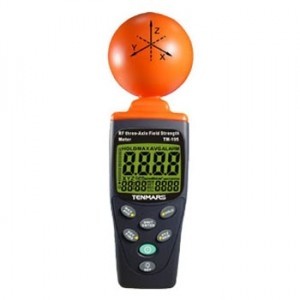

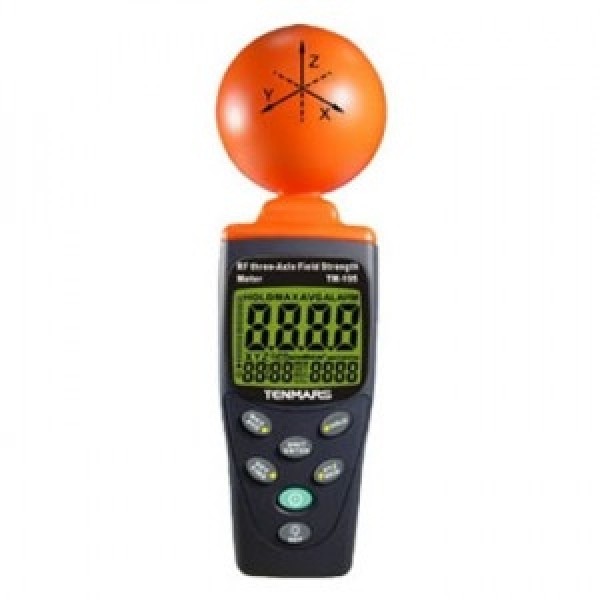

เครื่องมือวัดความเข้มคลื่นแม่เหล็กไฟฟ้า แบบ 3 แกน TM-195

3 Axis, RF Field Strength Meter High frequency 50MHz ~ 3.5GHz

Features:

• 50MHz to 3.5GHz Frequency range.
• For isotropic measurements of electromagnetic fields.
• Non-directional (isotropic) measurement with three- channel measurement sensor.
• High dynamic range due to three- channel digital results processing.
• Configurable alarm threshold and memory function.
• Easy & safety to use.
• Low battery detector.
• Over load indication.
• Auto power off (adjustable from 0~99 min) with disable function.

Application:

• High frequency (RF) electromagnetic wave field strength measurement.
• Mobil phone base station antenna radiation power density measurement.
• Wireless communication applications (CW, TDMA, GSM, DECT).
• RF power measurement for transmitters.
• Wireless LAN (Wi-Fi) detection, installation.
• Spy camera, wireless bug finder.
• Cellular /Cordless phone radiation safety level.
• Microwave oven leakage detection.
• Personal living environment EMF safety.

Specification: MODEL TM-195

• Measurement ranges:     38mv to 11v/m
• Display:            3-3/4 digits maximum reading 3999
• Frequency range:  50MHz ~ 3.5GHz
• Measurement units:  mV/m , V/m , µA/m , mA/m , µW/m2 ,mW/m2 , µW/cm2
• Display resolution:         0.1mV/m, 0.1µA/m, 0.001µW/m2, 0.001µW/cm2
• Manual data memory:   Read storage:200 data sets.
• Alarm function: Adjustable threshold with ON/ OFF
• Memory Recall:  Records Maximum & AVG
• Calibration factor CAL:   adjustable
• Sampling Time:   2.5 times per second.
• Operating  Temperature and Humidity:   0 to 50ºC  ( 32ºF to 122ºF ). Max. 80% RH.
• Power Supply:  9V battery(NEDA 1604 IEC 6F 22 JIS 006P)*1
• Battery life: approx. 50 hr.
• Weight / Size: 180g / 195(L)*56(W)*38(H) mm.
