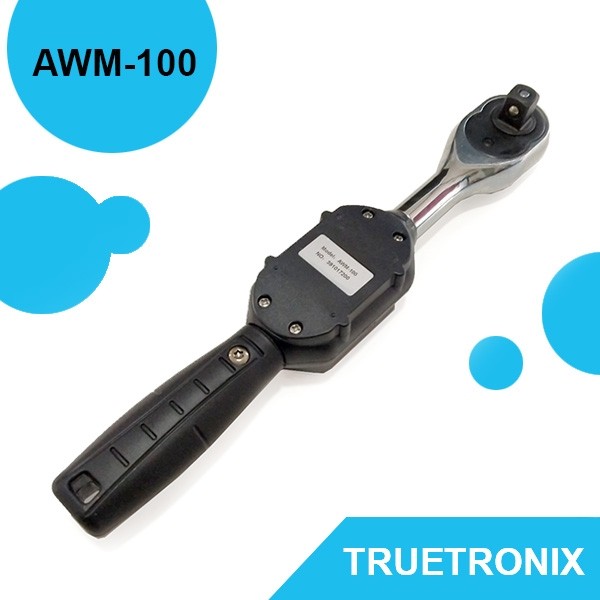

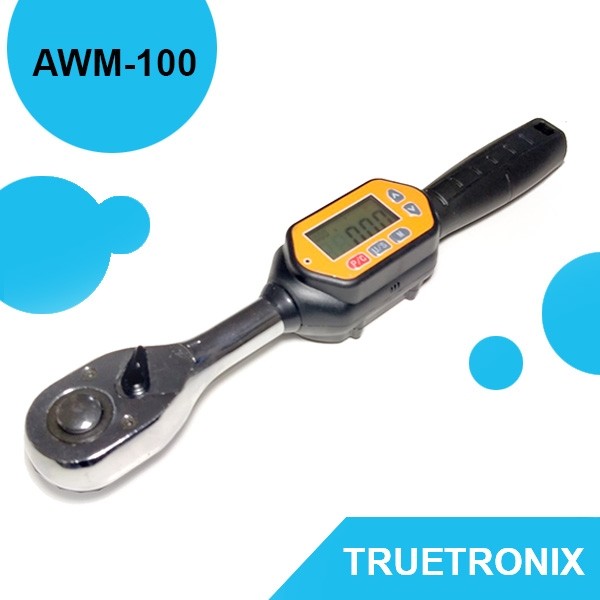

AWM-100 Mini Digital Torque Wrench 100Nm

รายละเอียด

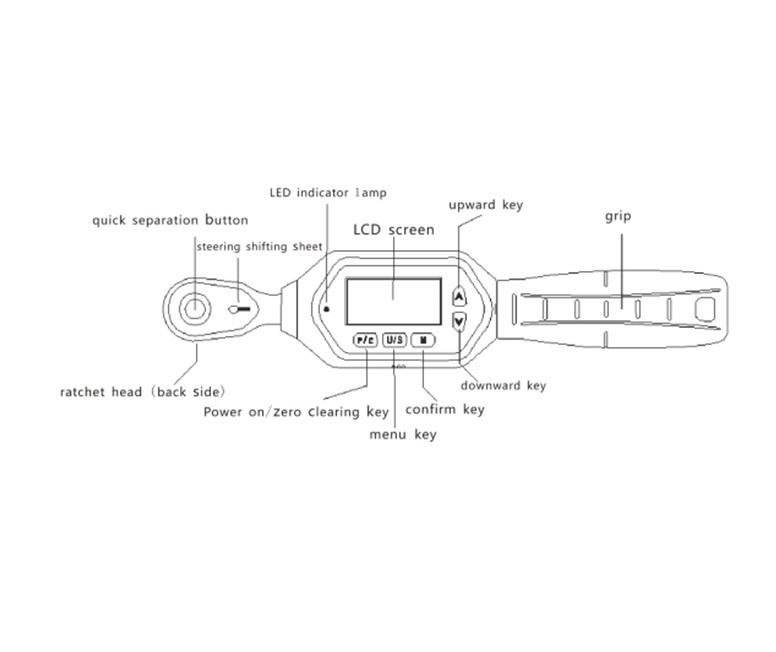

Function features

It has a large screen and has the backlight function.
The clockwise accuracy is ±2%, and the counterclockwise accuracy is 2.5% (20% to 100% of the full measuring range).
It can be operated both in the clockwise direction and the counterclockwise direction.
The buzzer and the LED indicator are triggered when reaching a preset torque value (peak-limited mode).
It has four engineering units (N.m, kgf.cm, lbf.tf, lbf.in).
It has three measuring modes, i.e. real-time mode, peak mode and preset mode.
It has 999 sets of storable record values.
It can be automatically powered off in 5 minutes.

Specifications

Model	AWM-10	AWM-30	AWM-60	AWM-100
Max torque range (N.m)	10	30	60	100
Minimum division value	0.01			0.1
Connector(inches)	1/4		3/8	1/2
Setting range of buzzer(N.m)	0.3~10	0.9~30	1.8~60	3~100
Length (mm)	230		240	285
Accuracy*1	Clockwise:±2% Counterclockwise:±2.5%
Data storage capacity	999
Operating mode	Peak mode(P)/ Real-time mode(T)/ Preset mode(Pre)
Unit	N.m, kgf.cm, lbf.tf, lbf.in
Form of ratchet head	Bidirectional ratchet head
Number of ratchet teeth	72 teeth
Number of keys	5
Battery	Two AAA batteries
Operating temperature	-10℃ to 60℃
Storage temperature	-20℃ to 70℃
Test falling height	one meter
Vibration test condition*2	10G
