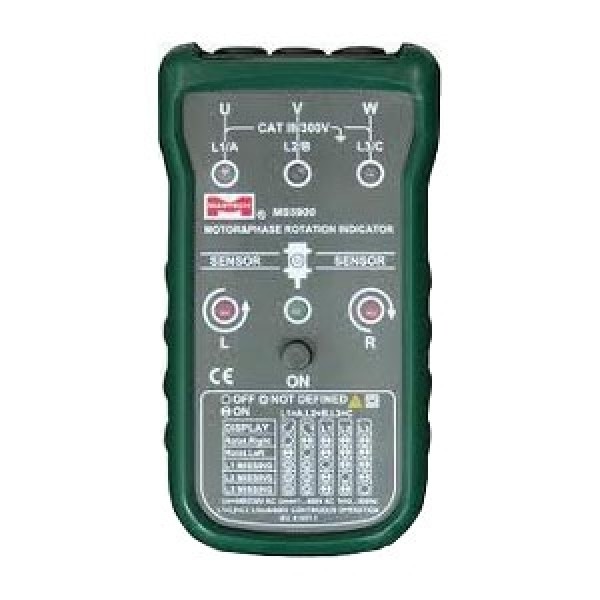

Motor and Phase Rotation Indicator เครื่องวัดทิศทางการหมุนมอเตอร์

Introduction:
Motor and Phase Rotation Indicator is a handheld, battery-operated instrument designed to detect the rotary field of three-phase systems and determine motor-rotation direction.

Features:

• Determine the Motor Connection
• Non-Contact Rotary Field Indication
• Determine Rotary Field Direction
• Standalone direction indicator
• Wireless.

Specification:

• Operating Temperature: 0 °C ~ 40 °C
• Operating Altitude: 2000 m
• Pollution Degree: 2
• Type of Protection: IP 40
• Humidity 15 % to 80 %
• Electrical Safety:
• Meets DIN VDE 0411, IEC 61010 DIN,
• VDE 0413-7, EN 61557-7, IEC 61557-7
• Maximum Operating Voltage (Ume): 400 V AC for all ranges
• Protection Level: CAT III, 600 V
• Battery: 6F22/9V (Not Included)
• Current Consomption: max 20 mA
• Battery Life: minimum1 year for average use
• Rotary Field Direction:
• Nominal Voltage Rotary Direction: 1 to 400 V AC
• Nominal Voltage Phase Indication: 120 to 400 V AC
• Frequency Range (fn): 2 to 400 Hz
• Test Currents (In per phase): less than 3.5 mA

Non-Contact Rotary Field Indication:

• Frequency Range (fn):2 to 400 Hz
• Determine the Motor Connection
• Nominal Test Voltage (Ume): 1 to 400 V AC
• Nominal Test Currents (In per phase): less than 3.5 mA
