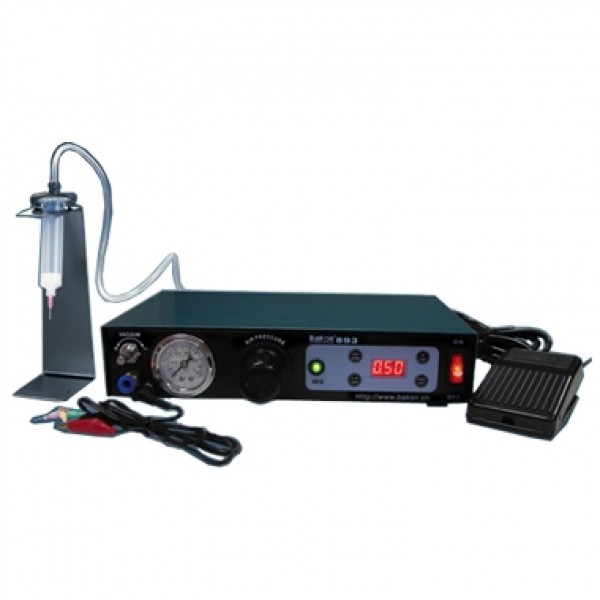

Automatic glue dispensor BK893 เครื่องหยอดกาวอัตโนมัติ

รายละเอียด

FEATURES:

Controlled by microcomputer making the dispensing volume and time more precise.
Perfect apperance by design, smart volume for saving space.
Easy and convenient to operate, matched with manual or pedal switch, enable to dispense with certain volume in fixed time.
Two-way air pressure, If the glue in the syringe is finished, It can absorb in two directions. Don't need to dismantle the syringe, all of this makes the operation very human based.
Kinds of dispensing nozzles for choosing.

SPECIFICATIONS:

GLUE DISOENSER 893		892
Power supply	AC 220V 50Hz
Output voltage	AC 18V	24V DC
Auto timing	0.02s-9.99s	0.01s-9.99s
Manual timing	Maintained or momentary pedal	(momentary pedeal)
Repeat tolerance	±0.5%
Air input	2.5 - 7 bar (35-100psl)
Air output	0.1 - 5.5 bar (1-78psl)
(Min. dispensing capacity)	0.001ml	0.005ml
Exterior dimension	265(W) x 59(H) x 225(L)mm
