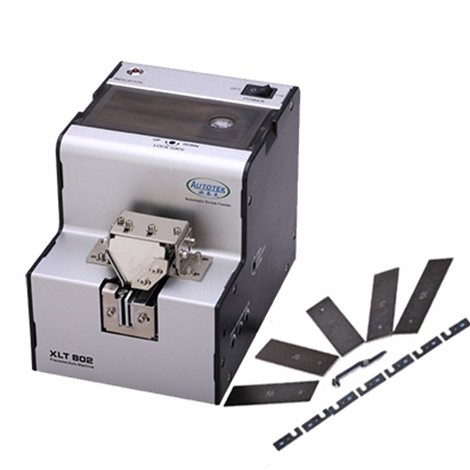

Automatic Screw Feeder Autotek 802 เครื่องจ่ายสกรูอัตโนมัติ

ราคาปกติ: ฿11,720.00

Special Price ฿9,962.00

สถานะของสินค้า : สินค้าพร้อมส่ง

จำนวน:

FEATURES:

Imported orbit materials/ good toughness/ and smooth/ not block screw/ durable.
Patent design vibrator/ vibrator always vibration/ never stop.
Guide Tsui fluctuation adjusted by screw/ convenient and accurate/ adjust distance can be accurate to 0.01 mm.
Brush fluctuation adjusted by screw/ very convenient.
801-C type with screw counting function: set A single product Shared screw quantity/ cycling and counting ways to additive or decline. B lock screws total records/ can count a machine total records a period out of the screw.
Adjust orbit randomly/ suitable for screw diameter range 1.0 mm to 5.0 mm/ it also suitable for diameter 1.0 mm screw.

SPECIFICATIONS:

Model Name	802	808	868	NSB
Screw Counter Function	NO	YES	NO	NO
DC Power supply	AC220V, DC12V500mA AC ADAPTER
Dimension(W)×(D)×(H)mm	123×181×145		231×123×140	123×181×145
Weight (KG)	2.9	2.9	3.5	3
continuous pickup speed	30-100 pcs/min (differ from Screw style)
Applicable Screw Dia	From M1.0 to M5.0 ( Dia from 1.0mm—5.0mm )			M1.0 to M3.0
Applicable Screw Length	≦20mm			≦17mm
Screw material	ferrous metal
Thread form	M screw & self-tapping
Orbit adjustment	Yes
Accessores(in package & box)	Allen Wrench ( L SHAPED 2.0107 mm) 1pc.
	Switching Adaptor AC220V/DC12V *1
	Accessary( front) 7019 0.8mm ，1.0mm,1.2mm,1.5mm,2.0mm each 1 pcs
	Accessary(behind) 20100.2mm2 pcs & 0.5mm10 pcs (contain the orbit)
	Screw separation blade2.0~5.0mm use *1
	Instruction Manual
Performance	1.Orbit (removed) adjustable, a machine can apply for a variety of specifications
	2.Screws rotasting feeding with precision can keep the screw from falling into the machine.
	3.Pick-up point with no vibration so as to ensure the screw pick-up easy and stable
