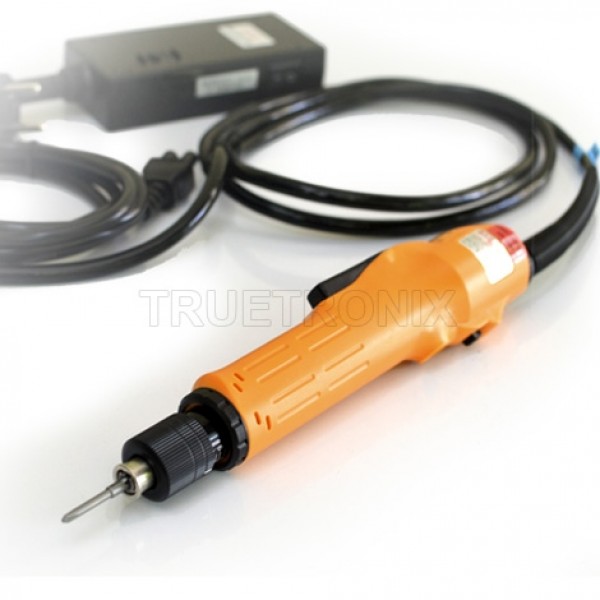

FEATURES:
- New technology, high temperature resistant, vibrating resistant, friendly holder, fashionable appearance, ligh, good operation, free from fatique under long time using.
- Low stable torque 0.3kgf.cm and precision +-3%
- Small, light body 280g, specially design for the precise needing of tiny screws.
- High tech DC motor made by Japanese material with high quality extra strong magnet, low electric current, stable running, high stability and stop as the screw fastened.
- 0-8 stepless torque adjustment, rotation speed selected by switches Hi&Lo or VR(freely adjust).
- Best applied to cell phone, digital cameras, notebook computers, PDA, DVD, MP3, CD-R, LCD, High-tech computer peripheral and assembly line.
- Torque fixing ring (KC-4) can be set to fix torque. Slow start is option for necessity.
- BSD-3000L Trigger series meet UL, CE, approval and ESD offered on the basis of customer's need.
SPECIFICATIONS:
Model | BSD-3000L | BSD-3200L | BSD-3300L | |
Input Voltage | DC 24V or 32V | |||
Torque | (kgf.cm) | 0.3-3.5 | 0.6-7 | 1-10.0 |
(Lbf.in) | 0.26-3.08 | 0.53-6.16 | 0.88-8.8 | |
(N.m) | 0.03-0.34 | 0.06-0.69 | 0.1-0.98 | |
Ropeatable Torque Accuracy | ±3% | |||
Torque Adjustment | Stepless | |||
Unload Rotation Speed(r.p.m)±10% | HI | 1000 | ||
LO | 700 | |||
Screw Size Dia(mm) | Machine Screw | 1.0-2.3 | 1.4-2.6 | 1.6-3.0 |
Tapping Screw | 1.0-2.0 | 1.4-2.3 | 1.6-2.6 | |
Power Consumption | 25W | |||
Weight(g) | 270 | |||
Length(mm) | 205 | |||
ESD (Anti-Static) | Yes | |||
CE | Yes | |||
RoHS | Yes | |||
Torque Fixing Ring | KC-4 | |||
Suspension Rack | KC-4 | |||
Power Controller | BSP•32HL/32VR•40W BSP•32HL/32VR•60W |
