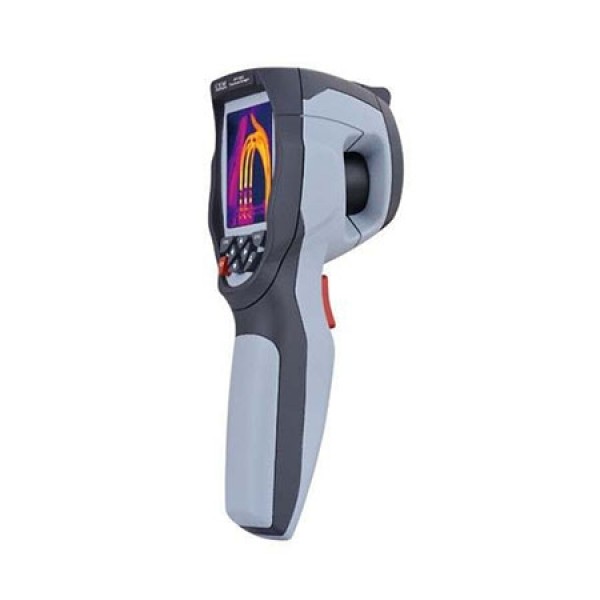

CEM DT-980 Thermal Imagers ปืนวัดอุณหภูมิและสแกนความร้อน - บริษัท ทรูโทรนิคซ์ เทคโนโลยี จำกัด

รายละเอียด

FEATURES:

High resolution IR images 6,400 pixels (80x80) Infrared resolution (DT-980)
Visible light digital camera 640x480 resolution with fl ash provides sharp images regardless of lighting conditions

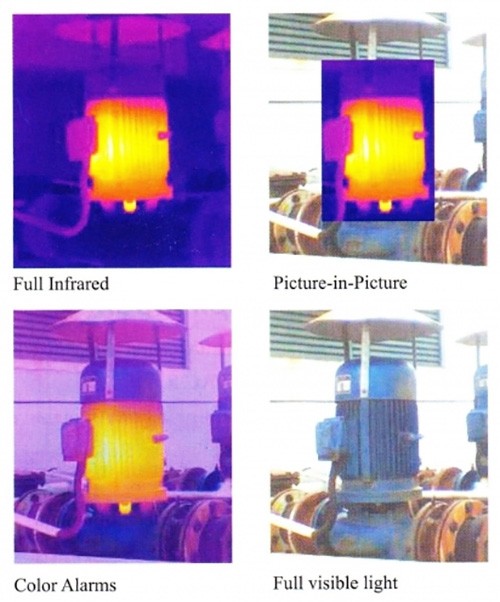

Picture in picture displays thermal image super-imposed over a digital image
LED flashlight allows the visual camera and fusion to be used in poorly lit environments
Wide temperature range from -20 to +350°C targeting electrical and industrial applications
±2% Accuracy reliable temperature measurement
Thumbnail view easy to view and analyze images quickly
The image rotation the ability to automatically rotate the active image
Audio recorded with the video image a speaker to listen to audio recorded with the video image
Capacitive touch screen more easy, productive and effective to operate it
Li-Ion rechargable battery lasts >4hrs continuous use; replaceable
Copy to USB easy uploads images from camera to USB memory card
Area (Min/Max) mode shows the minumum or the maximum temperature reading in the selected area

SPECIFICATIONS:

Specifications		980	982	983
Imaging and optical data
IR resolution	focal plane array (FPA), uncooled microbolometer	80x80 pixels	160x120 pixels	160x120 pixels
Field of View (FOV)	33° x 24°	*	*	*
Minimum focus distance	0.3m (0.99 ft.)	*	*	*
Spatial resolution	(IFOV) 3.33 mrad	*	*	*
Thermal sensitivity/NETD	<0.1°C @ +30°C (+86°F)/100mK	*	*	*
Image frequency	50Hz	*	*	*
Focus	Manual	*	*	*
Zoom	1-32X continuous, digital zoom		*	*
Rotate	0-360°, continuous change by 1°	*	*	*
Image presentation
Display	3.5" TFT	*	*	*
Image modes	IR image, visual image, picture in picture	*	*	*
Color palettes	GRAY/GRAY IRON/IRON/RAINBOW/FEATHER	*	*	*
Measurement
Object temperature range	-20°C to +150°C(-4°F to +302°F) 0°C to +280°C(+32°F to +536°F)	*
Object temperature range	-20°C to +150°C(-4°F to +302°F) 0°C to +400°C(+32°F to +752°F)		*	*
Accuracy	±2°C(±3.6°F) or ±2% of reading	*	*	*
Measurement analysis
Spotmeter	central point	*	*	*
Emissivity	0.10~1.0 Adjustable, Emissivity table of predefined materials	*	*	*
Area	central boxes with max/min/average	*	*	*
Automatic hot/cold detection	Auto hot or cold spotmeter marks within area	*	*	*
Set-up
Set-up commands	Local adaptation of units, language, date and time formats, information of camera	*	*	*
Language selection	English, Chinese, French, German, Spanish	*	*	*
Storage of videos/images
Storage media	4Gbytes Micro SD card, Standard JPEG, >1000 pictures	*	*	*
Video storage format	Standard MPEG-4, 1080P@30fps, on memory card >60 minutes		*	*
Video storage mode	IR/visual images; simultaneous storage of IR and visual images	*	*	*
Digital camera
Built-in visible light digital camera	2 Mega pixels,	*	*	*
Data communication interfaces
USB interfaces	USB-mini, audio, composite video, Micro SD slot, Data transform between camera and PC	*	*	*
Wi-Fi connectivity	Wi-Fi connectivity allows to transfer images and data to mobile devices			*
Video out	HDMI (1080P)			*
