DESCRIPTIONS:

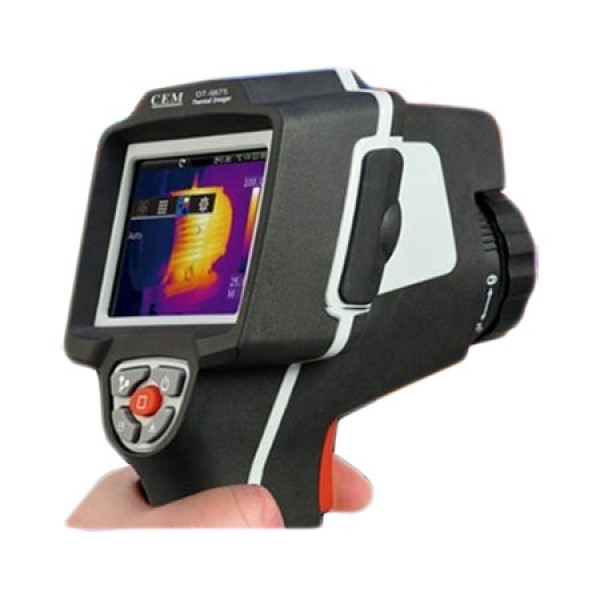

DT-9875 series Thermal Imager is designed to make your work easier, more productive and effective. 160 × 120 resolution at 50 Hz for real-time capture; a big, bright touch screen with toolbar helps you to fine-tune and analyze images quickly. Temperature range from -20°C to 400°C (-4°F to 752°F), 20X continuous zoom, picture-in-picture, voice comment recording and text annotation on images. Hot/Cold spot marker automatically finds the hottest and coldest spots. It includes memory card, lithium polymer battery & power supply, and USB cable.
SPECIFICATIONS:
- Field of View (FOV) / Minimum Focus Distance: 33º x 24º / 0.3m
- Spatial Resolution (IFOV): 3.33mrad
- Termal Sensitivity/NETD: < 0.08ºC @ 30ºC (86ºF) /80mK
- Image Frequency: 50 Hz
- Focus: Manual
- Focal Plane Array (FPA) / Spectral Range: Uncooled microbolometer / 8-14um
- IR Resolution: 160 x 120 pixels
APPLICATIONS:
- Plant/General Maintenance
- HVAC/R
- Transportation/Automotive
- Cooling and Reheating
- Serving areas
- Food service Equipment
- Cold storage
