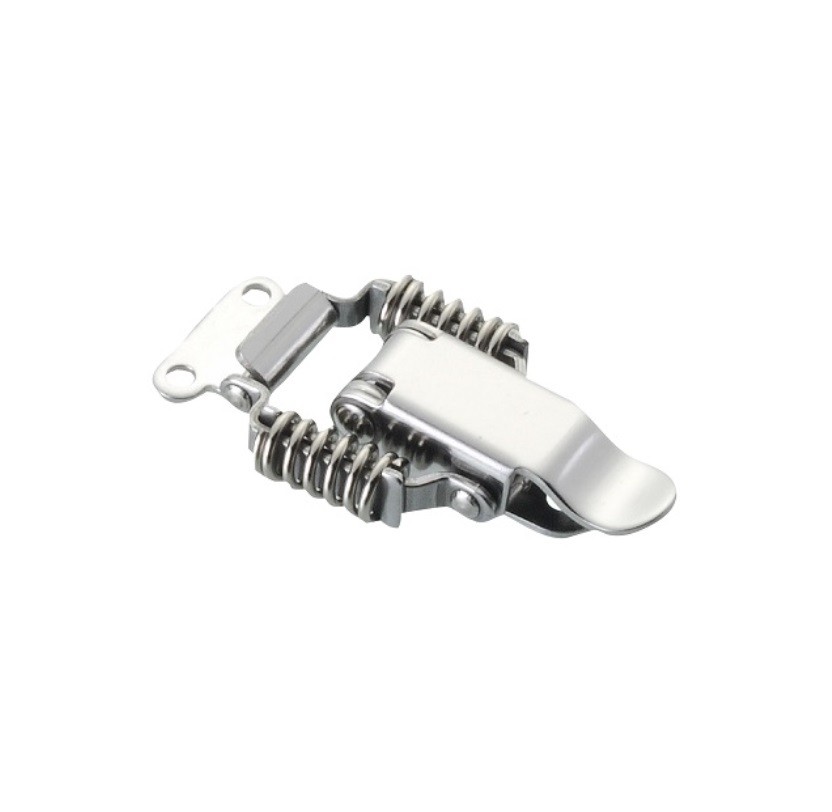

Draw Latches CS(T)-111 series - Spring Loaded Type

Features (★Please drop down to check the SPECS.)

Spring Loaded Draw Latch ｜The proposed load of 17 kgf, both sides spring design with compression function.

Suitable for vibration equipment.

Corrosion resistance.
The option are vertical keeper and horizontal keeper to been selected.
Excellent aesthetic appearance and smooth surface, in accordance with RoHS.
➤Material: SUS304(Stainless steel)-vibration ground, SPCC(cold-rolled steel)-zinc plated

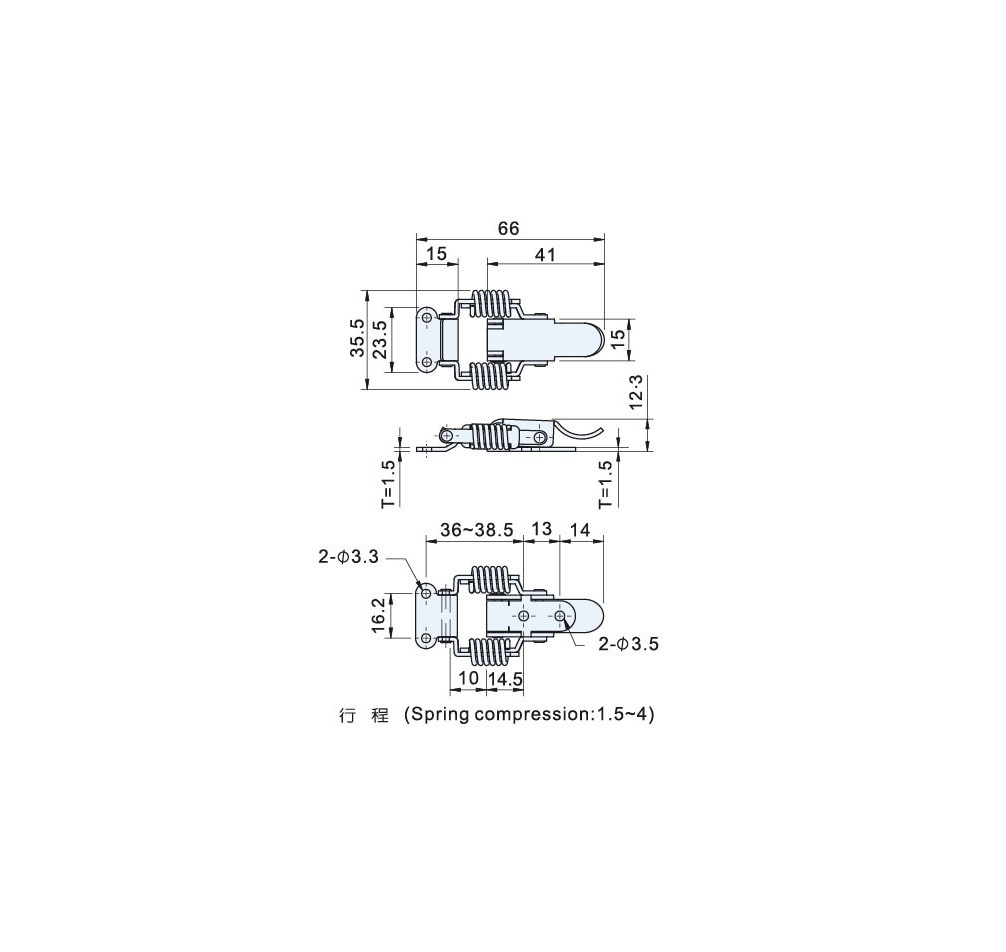

SPECIFICATIONS

Unit: mm [※1 kgf ≒ 10 N]
