DESCRIPTIONS:

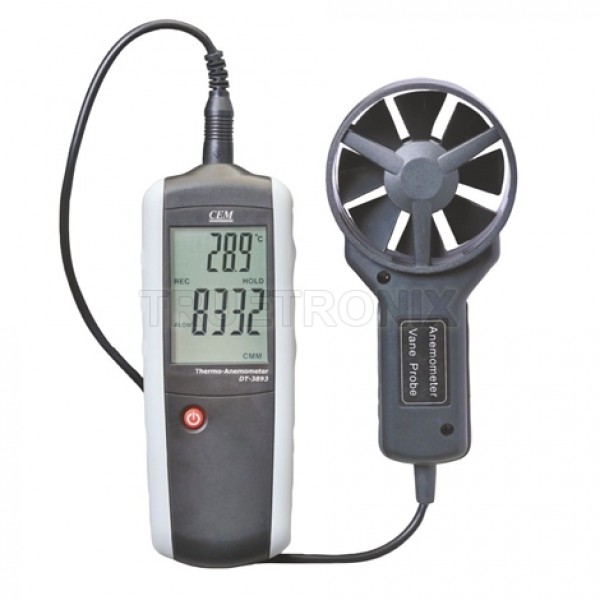

The CFM/CMM Thermo Anemometer instrument measures Air Velocity, Air Flow (volume) and Temperature. The large, easy-to-read backlit LCD includes primary and secondary displays plus numerous status indicators. The meter is shipped fully tested and calibrated and with proper use will provide years of reliable service.
*Every CFM/CMM Thermo-Anemometer come with Calibration Test Report from the CEM Manufacturer.
FEATURES:
- Display Air Flow (CFM/CMM), or Air Velocity plus Temperature & Max/Min/Avg value
- Easy to set Area dimensions (cm2) stored in the meter´s internal memory for the next power on
- Resolution of 0.01m/sec
- 20 points average for Air Flow
- Super large LCD Backlit Display
- 3% velocity accuracy via low friction 2.83"D (72mm) ball bearing vane wheel on 3.9ft (120cm) cable
- Low battery indication and Auto Power Off
SPECIFICATIONS:
- Air Velocity
- m/s (meter per second)
- Range: 0.40~30.00
- Accuracy: ±3% ±0.20m/s
- ft/min (feet per minute)
- Range: 80~5900
- Accuracy: ±3% ±40ft/min
- km/h (kilometers per hour)
- Range: 1.4~108.0
- Accuracy: ±3% ±0.8km/h
- MPH (miles per hour)
- Range: 0.9~67.0
- Accuracy: ±3% ±0.4MPH
- Knots (nautical miles per hour)
- Range: 0.8~58.0
- Accuracy: ±3% ±0.4knots
- Air Temperature
- Range: 14-140ºF(-10-60ºC)
- Accuracy: ±4.0ºF(2.0ºC)
- Air Flow
- CFM
- Range: 0-999900
- Area: 0-999.9 ft2
- CMM
- Range: 0-999900
- Area: 0-999.9 m2
- Weight: 296g including battery & probe
Dimensions:
- Main instrument: 160 x 62 x 21mm
- Sensor Head: 72mm Diameter
- STANDARD CERTIFICATIONS:
- CE
- EMC
- EN: 61326
- INCLUDES:
- Anemometer & Anemo probe
- Users manual x 1
- 9V Battery x 1
