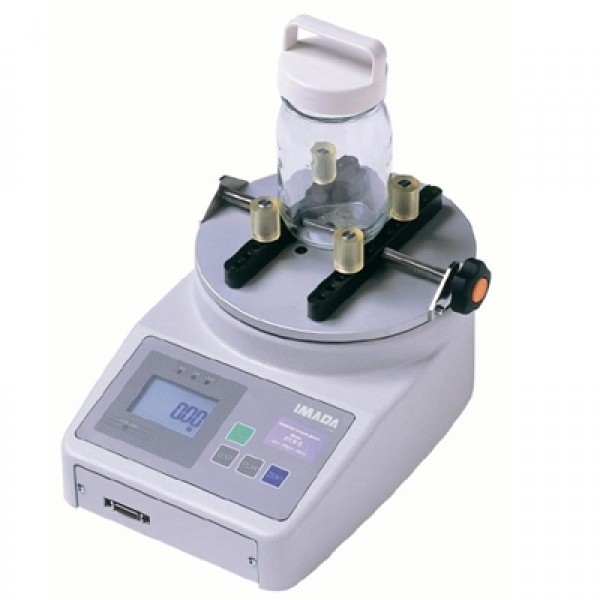

APPLICATIONS:
Measure the torque of screw caps of cosmetics, foods or drinks.
FEATURES:
- Less shakiness of the table unit.
- Weight of table unit and vertical force are kept by 2 ball bearings.
- Easy to clamp the sample by 4 clamping mouth-pieces.
- Digital display shows CW/CCW torque and peak torque.
- Comparator function which can program Hi/Lo set point.
- Memory stores up to 1000 measurement.
- Various outputs RS-232C for PC, Analog and Mitutoyo Digimatic.
- Selectable three units (N-m/Kgf-m/lb-in or N-cm/Kgf-cm/lb-in)
- Two models ( battery use or AC power use) are available
SPECIFICATIONS:
Model | Capacity | Display | Resolution | |
DTX2-2N-A | DTX2-2N-B | 2N-m | 2.000N-m | 0.001N-m |
DTX2-5N-A | DTX2-5N-B | 5N-m | 5.000N-m | 0.001N-m |
DTX2-10N-A | DTX2-10N-B | 10N-m | 10.00N-m | 0.01N-m |
DTX2-200Nc-A | DTX2-200Nc-B | 200N-cm | 200.0N-cm | 0.1N-cm |
DTX2-500Nc-A | DTX2-500Nc-B | 500N-cm | 500.0N-cm | 0.1N-cm |
DTX2-1000Nc-A | DTX2-1000Nc-B | 1000N-cm | 1000N-cm | 1N-cm |
Model -A and -B Difference
- DTX2-[range]-A: Mains AC100V~240V
- DTX2-[range]-B: NiMH rechargeable batteries or AC adapter
