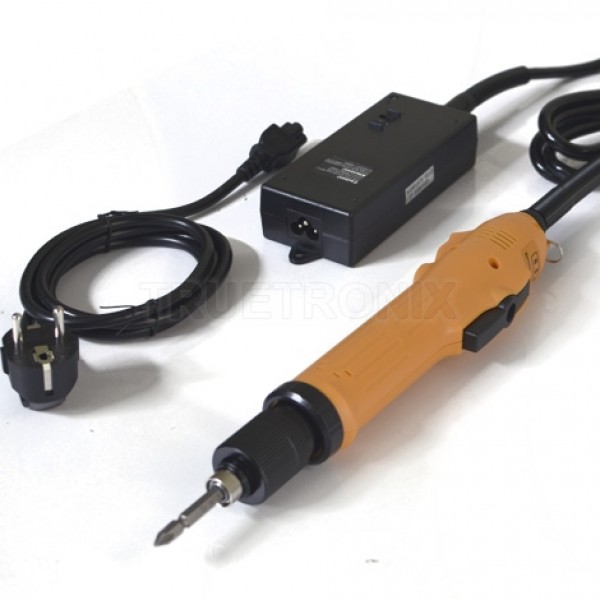

BSD-8000L Torque Screwdriver ไขควงทอร์คไฟฟ้าแบบออโตเมติก

รายละเอียด

DESCRIPTIONS:

1. New technology, fully automation, as fastened screw reach preset torque, clutch will stops immediately.

2. Freendly holder, free from fatigue under long-time using and improve production efficiency.

3. Low-voltage with power controllers, no infulunce by fulctuated voltage can keep long-time operateion.

4. Precise torque, torque adjusted from samll to large, stepless and stable.

5. Rotation speed can select by switch Hi & LO or adjust freely by VR.

6. cOMPLETE SERIES TO PROVIDE FULL TORQUE RANGE (0.2~48kgf.cm) for all general applications such as cel phone, digital camera, PDA, DVD, Notebook, PC, office machine and other peripherals, etc..

SPECIFICATIONS:

Model		BSD-8000L	BSD-8200L	BSD-8800L	BSD-8800LF
Input Voltage		DC 24V or 32V			DC 32V

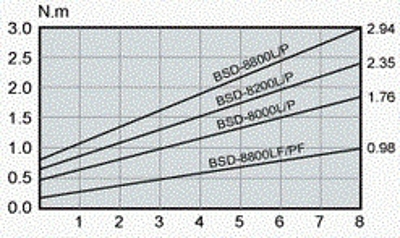

Torque	(kgf.cm)	5~18	7~24	8~30	2~10
	(Lbf.in)	4.4~15.84	6.16~21.12	7.04~26.4	1.76~8.8
	(N.m)	0.5~1.76	0.69~2.35	0.78~2.94	0.2~0.98
Repeatable Torque Accuracy (%)		±3%
Torque Adjustment		Stepless
Unloaded Rotation	HI	1000	750	530	2000
Speed(r.p.m)±10%	LO	700	520	350	-
ScrewSize	Machine Screw	2.0~3.5	2.6~4.0	3.0~5.0	2.0.~3.0
Dia(mm)	Tapping Screw	2.0~3.0	2.6~3.5	3.0~4.0	2.0~2.6
Power Consumption		50W
Weight (g)		600
Length(mm)		260
ESD (Anti-Static)		Yes
CE		Yes
RoHS		Yes
Torque Fixing Ring		KC-2
Suspension Rack		KH-3
Power Controller		BSP-32HL/32VE-60W
