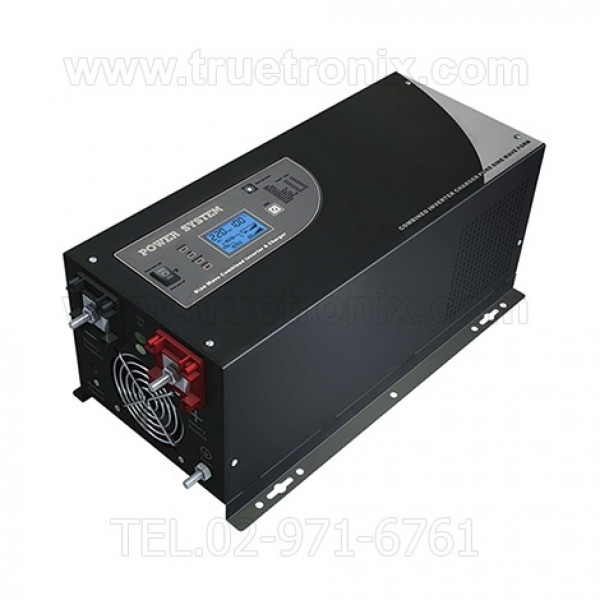

EP3000 Series เครื่องแปลงไฟจากแบตเตอรี่เป็นไฟฟ้า 220 โวลต์

มุมมองเพิ่มเติม

EP3000 Series เครื่องแปลงไฟจากแบตเตอรี่เป็นไฟฟ้า 220 โวลต์

เป็นคนแรกที่รีวิวสินค้านี้

฿:สอบถาม-ขอใบเสนอราคา

สถานะของสินค้า : สินค้าพร้อมส่ง

รหัสสินค้า: 000921

รายละเอียดโดยย่อ

EP3000 Series เครื่องแปลงไฟจากแบตเตอรี่เป็นไฟฟ้า 220 โวลต์

ขอใบเสนอราคา

รายละเอียด

CHARACTERISTICS:

Soft start capability for starting heavy loads
New power factor corrected (PFC) charging
Available in 1000 and 3000 watt models Utility grade, sine wave power
Durable construction for long life under extreme environmental conditions
70 amp automatic three-stage battery charger (bulk, absorption, and float)
battery equalization with remote temperature sensor for increased performance
Low idle current (less than 1 watt) conserves energy when no loads are present
Built-in starting control circuits for two- and three-wire generator starting systems*
New digital display shows kilowatts (kW) when inverting and amps (A) when charging
Better thermal performance allows full output power to 50°C (122°F) without de-rating
High surge capacity starts more difficult loads and handles overload conditions reliably
Simplified controls with a snap-on cover that protects settings from being accidentally changed

SPECIFICATIONS:

MODEL	EP1012/1024
Rated Output Power (W)	1000
LINE MODE SPECIFICATIONS
Input Voltage	230Vac(120VAC selectable)
Input Frequency	50Hz/60Hz (Auto detection)
Output Voltage Waveform	Pure sine wave
Over-Load Protection(SMPSload)	Circuit breaker
Output Short Circuit Protection	Circuit breaker
Efficiency (Line Mode)	>95%
Auto Transfer Relay	30A
Transfer Time	10ms (typical)
Pass through without Battery	Yes
Max Bypass Overload Current	30A
INVERT MODE SPECIFICATIONS
Output Voltage Waveform	Pure sine wave
Power Factor	1
Output Voltage (V)	230Vac/120 ±10%
Output Frequency (Hz)	50/60Hz ± 0.3Hz
Auto Tracking Main Frequency (Hz)	50Hz @ 48-54Hz; 60Hz @ 58-64Hz
Output Voltage Regulation	± 10% rms
Efficiency	> 80%
Over-Load Protection(SMPSload)	(110%150% ±10%; Fault (shutdown output) after 20s
Surge Rating	3000VA
Capable Of Starting Electric Motor	1 HP
Inverter Breaker Size	10A
DC Input Voltage	12V/24V
Min DC Start Voltage	11V/22V/43V
Low Battery Alarm	10.5Vdc ± 0.3Vdc for 12V battery; 21.0Vdc ± 0.6Vdc for 24V battery; 42.0Vdc ± 0.6Vdc for 48V battery
Low DC input Shut-down	10.0Vdc ± 0.3Vdc for 12V battery; 20.0vdc± 0.6Vdc for 24V battery; 40.0Vdc± 0.6Vdc for 48V battery
High DC input Alarm & Fault	16Vdc ± 0.3Vdc for 12V battery; 32Vdc ± 0.6Vdc for 24V battery; 64Vdc ± 0.6Vdc for 48V battery
High DC input Recovery	15.5Vdc ± 0.3Vdc for 12V battery; 31.0Vdc ± 0.6Vdc for 24V battery; 62.0Vdc ± 0.6Vdc for 48V battery
Power saver	Load ≤25W
CHARGE MODE SPECIFICATIONS
Input Voltage	230Vac / 1200Vac
Input Voltage Range	155-265Vac / 96-127Vac
Output Voltage	Same as input voltage
Multi Stage Smart Charger (Amp)	35A/20A
Charge Current Adjustable Gear	25%, 50%, 75%, 100%
Charger Short Circuit Protection	Circuit breaker
Over Charge Protection	Bat. V ≥ 15.7Vdc/31.4Vdc/62.8Vdc, beeps 0.5s every 1s & fault after 60s
GENERAL SPECIFICATIONS
Safety Certification	CE, Soncap, ISO9001
Operating Temperature Range	0°C to 40°C
Storage temperature	15°C below zero to 60°C
Operation humidity	5% to 95%
Audible Noise	60dB max
Cooling	Forced air, variable speed fan
Net Weight (KG)	16
Gross Weight (KG)	19
Inverter Size	423X185X160MM
Carton Box Size	570315300MM
Wooden Case Size	614X362X359MM
