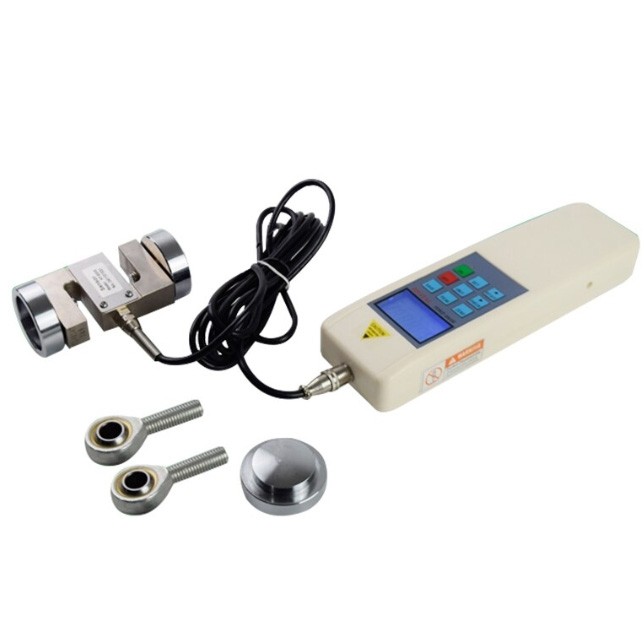

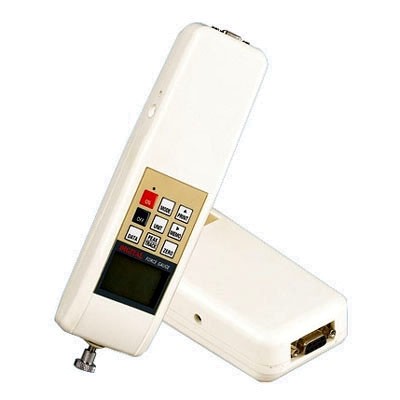

HF Series Digital Force Gauge 0-1000KN เครื่องวัดแรงดึง แรงกด แรงผลัก

รายละเอียด

HF Series Digital Force Gauge (0-1000KN) has its own characters, with facility, high resolution, which can be used not only for simple measurement of tension/compression force but also used for various testing purpose; such as switch test, connector insertion/withdraw test, and fracture test, is efficient push pull testing equipment in a new generation.

Specification:

Model	HF-2	HF-5	HF-10	HF-20	HF50	HF-100	HF-200	HF-500
Capacity	2N	5N	10N	20N	50N	100N	200N	500N
Resolution	0.001N	0.001N	0.01N	0.01N	0.01N	0.1N	0.1N	0.1N
Accuracy	+/- 0.5%

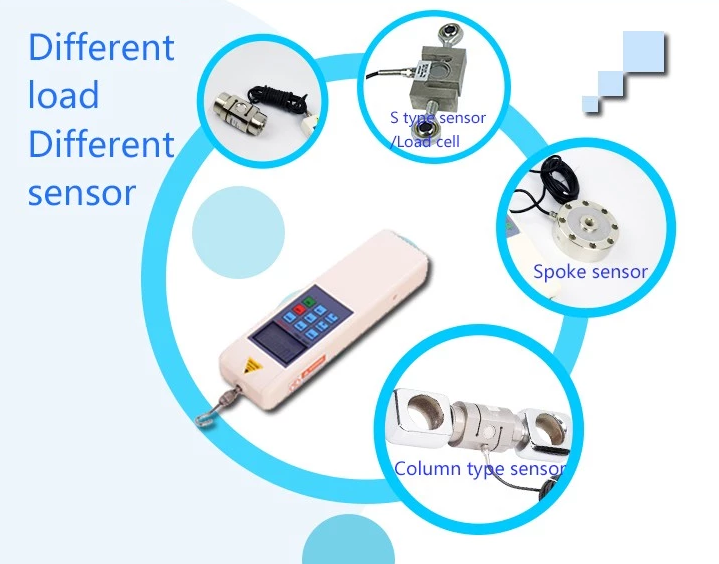

Sensor	Inside (S Type)
Dimension	230x66x36mm

Model	HF-1K	HF-2K	HF-5K	HF-10K	HF-20K	HF-50K	HF-100K	HF-200K	HF-500K	HF-1000K
Capacity	1000N	2000N	5000N	10KN	20KN	50KN	100KN	200KN	500KN	1000KN
Resolution	1N	1N	1N	0.01KN	0.01KN	0.1KN	0.1KN	0.1KN	0.1KN	1KN
Accuracy	+/- 0.5%							+/- 1%
Sensor	Outside (S Type)							Outside (Cycle Type)
Dimension	230x66x36mm
