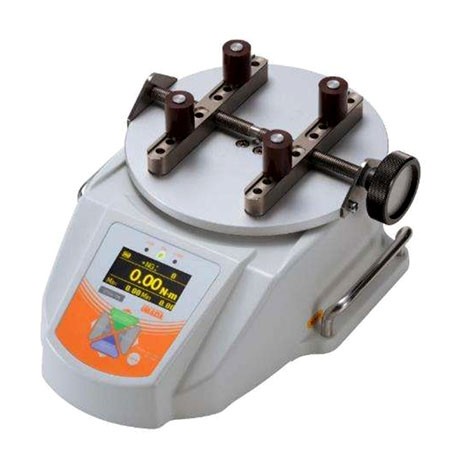

Cap Torque Tester IMADA DTXS เครื่องทดสอบแรงบิดฝาขวด

Features:

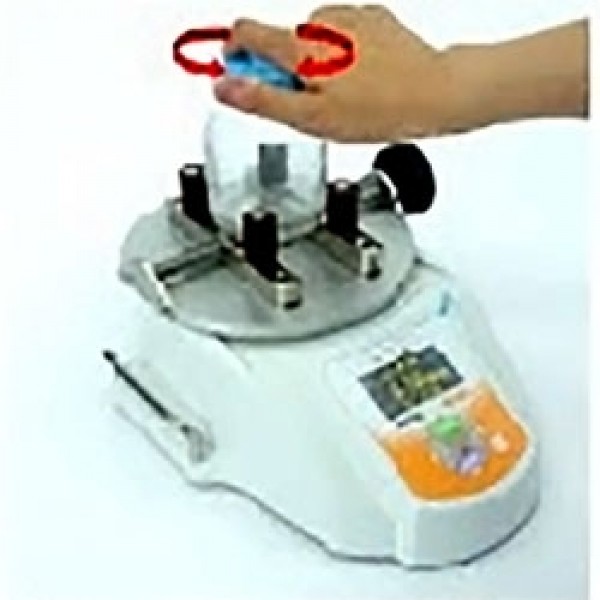

• Measure torque of opening PET bottles an bins.
• High repeatability by high speed sampling rate.
• Various sample torque can be measured with the multipel tables and attachments.
• Useful functions improving work efficiency

Specifications:

• Accuracy: ±0.5％F.S.±1digit
• Unit of measurement: N-m, N-cm, kgf-m,kgf-cm, ozf-in, lbf-in (Unit switching is possible.)(*1)
• Display: 4-digit
• Display update: 10 times/ sec
• Sampling rate: Maximum 2000 data/ sec(*2)
• Battery: 8 hours (8 hours full charge)(*3)
• Safe overload rating: Approx. 200%Approx. 200%
• Operating Environment: Temperature: 0 -40 degree Celsius Humidity: 20 -80%RH
• Function: Customized display(header and footer) / Peak hold(Clockwise and Counterclockwise)/Internal memory(1000 point data)）/ Comparator (OK or NG judgment)/Reversible display/ Sign inversion/ Zero clear timer/ +NG alarm/Off timer(Auto power off)/ Dumping/ Time display
• Output: USB, RS232C, Mitutoyo digimatic (*5), 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm
• Overload warning: Approx.110%F.S. (Warning message and alarm )
• External connecting switch: SEND (a point of contact holding), Zero reset, Peak, ON/OFF setting
• Weight: Approx. 4.5kg (Including Standard table and Standard pins)
• Dimensions: Please refer to dimensions.
• Accessory: AC adapter, Inspection certificate, CD driver (including simple software for data logging), USB cable, Carrying case, L wrench, handles (10N-m range only)

Model available:
